Keypads B - 5
Alpha-numeric Keypad Configurations
The three types of alpha-numeric keypads (QWERTY, AZERTY and QWERTZ) produce the 26-character
alphabet (A-Z, both lowercase and uppercase), numbers (0-9), and assorted characters. The keypad is
color-coded to indicate which modifier key to press to produce a particular character or action. The keypad
default is alphabetic, producing lowercase letters. See Table B-3 for key and button descriptions and Table B-4
on page B-8 for the keypad’s special functions. AZERTY keypad is used on configurations installed with the
French operating system. QWERTZ keypad is used on configurations installed with the German operating
system.

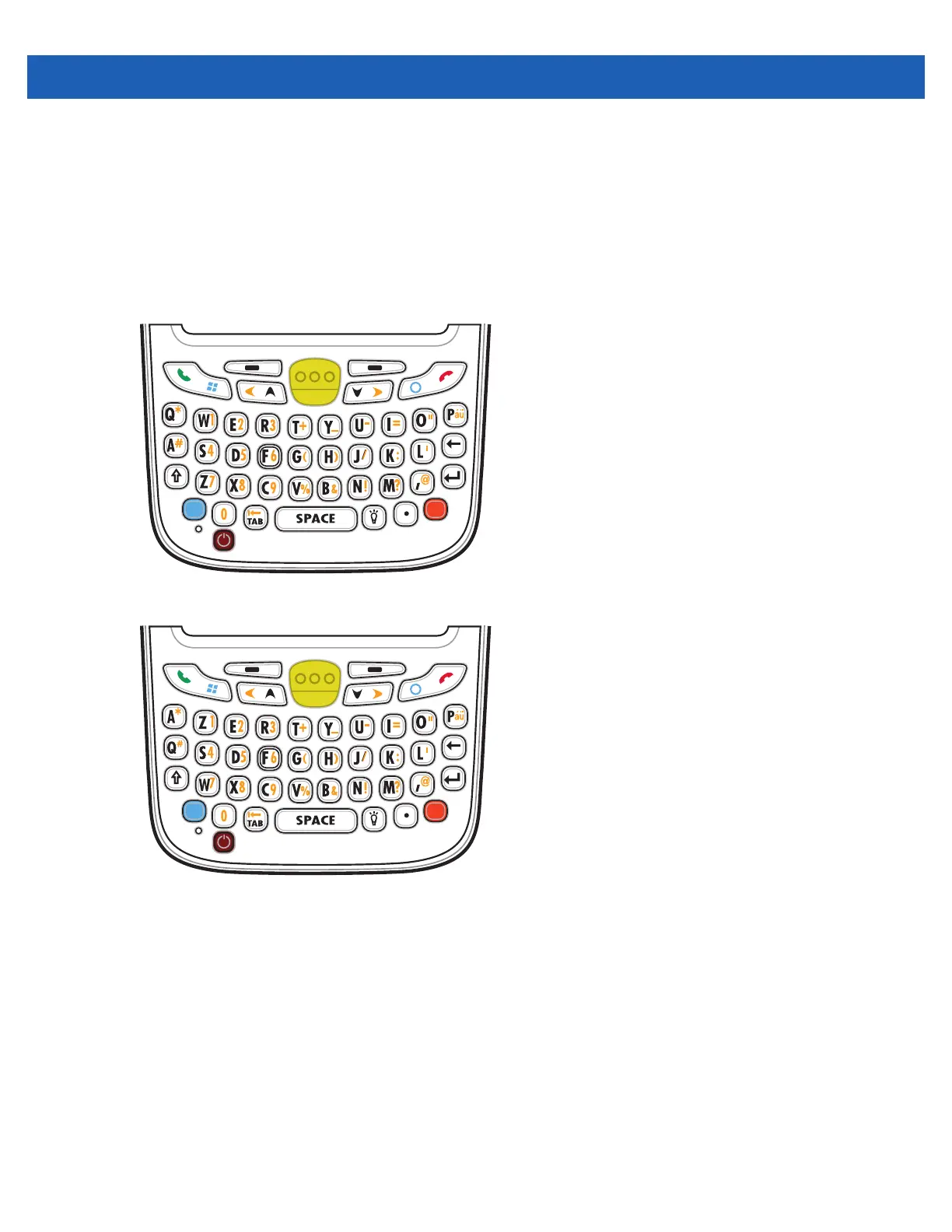

Figure B-2
QWERTY Keypad Configuration
Figure B-3
AZERTY Keypad Configuration
