CA Series User’s Manual Software Installation
3-58

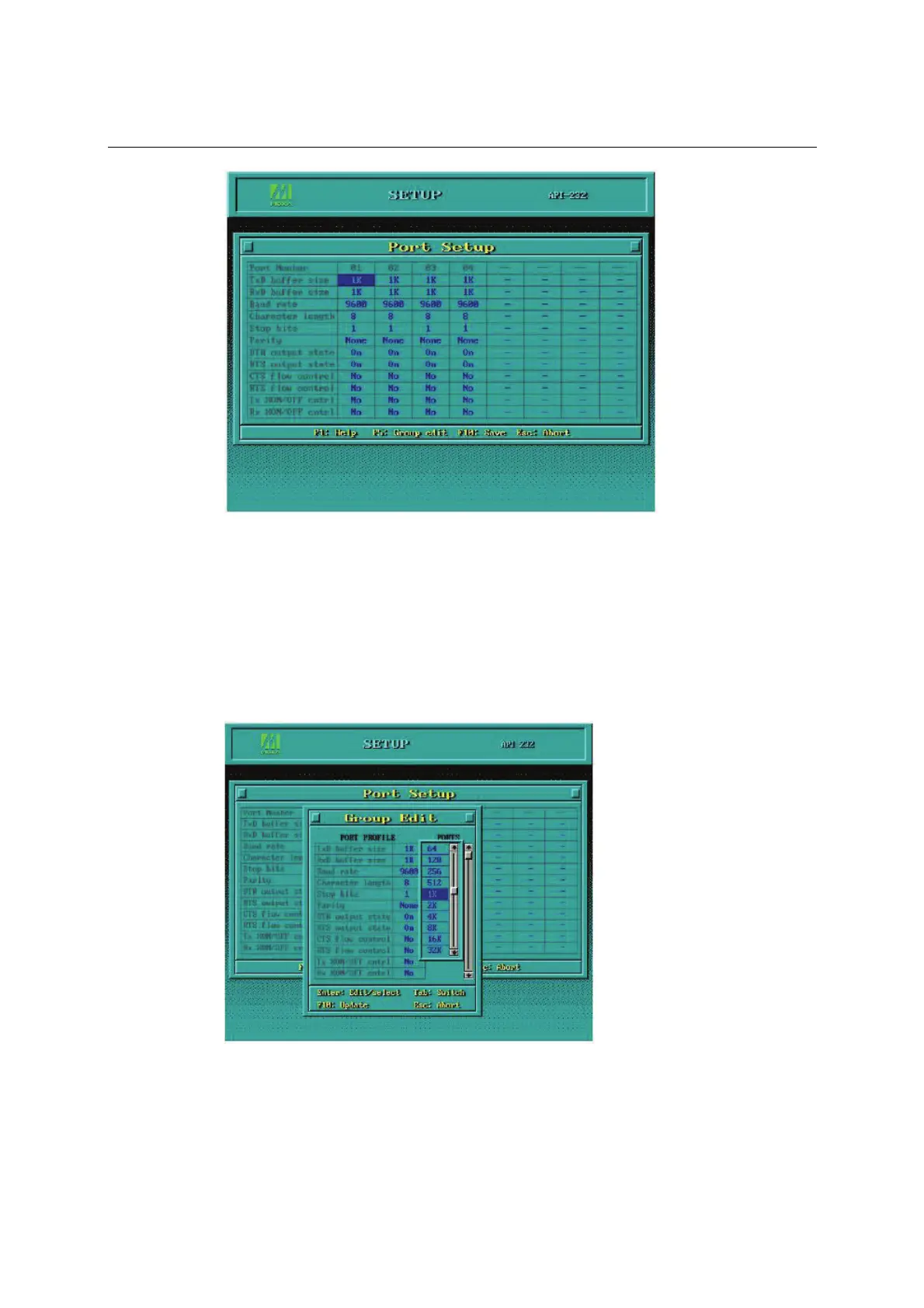

Port number:
This is the port ID of each port. Application software will refer to a port
by its port number (ID). Port numbers must be unique; duplicate port
numbers are not allowed. The port ID can range from 0 to 127 as long as
it does not overlap with another port. Generally, you should consider the
convenience of programming when specifying the port number.
TxD buffer size:
This is the transmission (output) buffer allocated in the system for each
port.
RxD buffer size:
This is the receiving (input) buffer allocated in the system for each port.
F5: Group Edit:
This allows you to configure several ports simultaneously as a group.
6. Press F10 to save the latest configuration and exit the setup program.
