Moxa Managed Ethernet Switch (UI_2.0_FW_5.x) User Manual
Priority
0 to 7
The port priority has 8 priority queues: f rom 0 (lowest) to 7
3
NOTE
The priority of an ingress f rame is determined in the f ollowing order:
1. ToS/DSCP Inspection
2. CoS Inspection
3. Priority
NOTE
The designer can enable these classif ications individually or in combination. For instance, if a “hot” higher
priority port is required for a network design, TOS/DSCP Inspection and Cos Inspection can be
disabled. This setting leaves only port def ault priority active, which results in all ingress f rames being
assigned the same priority on that port.

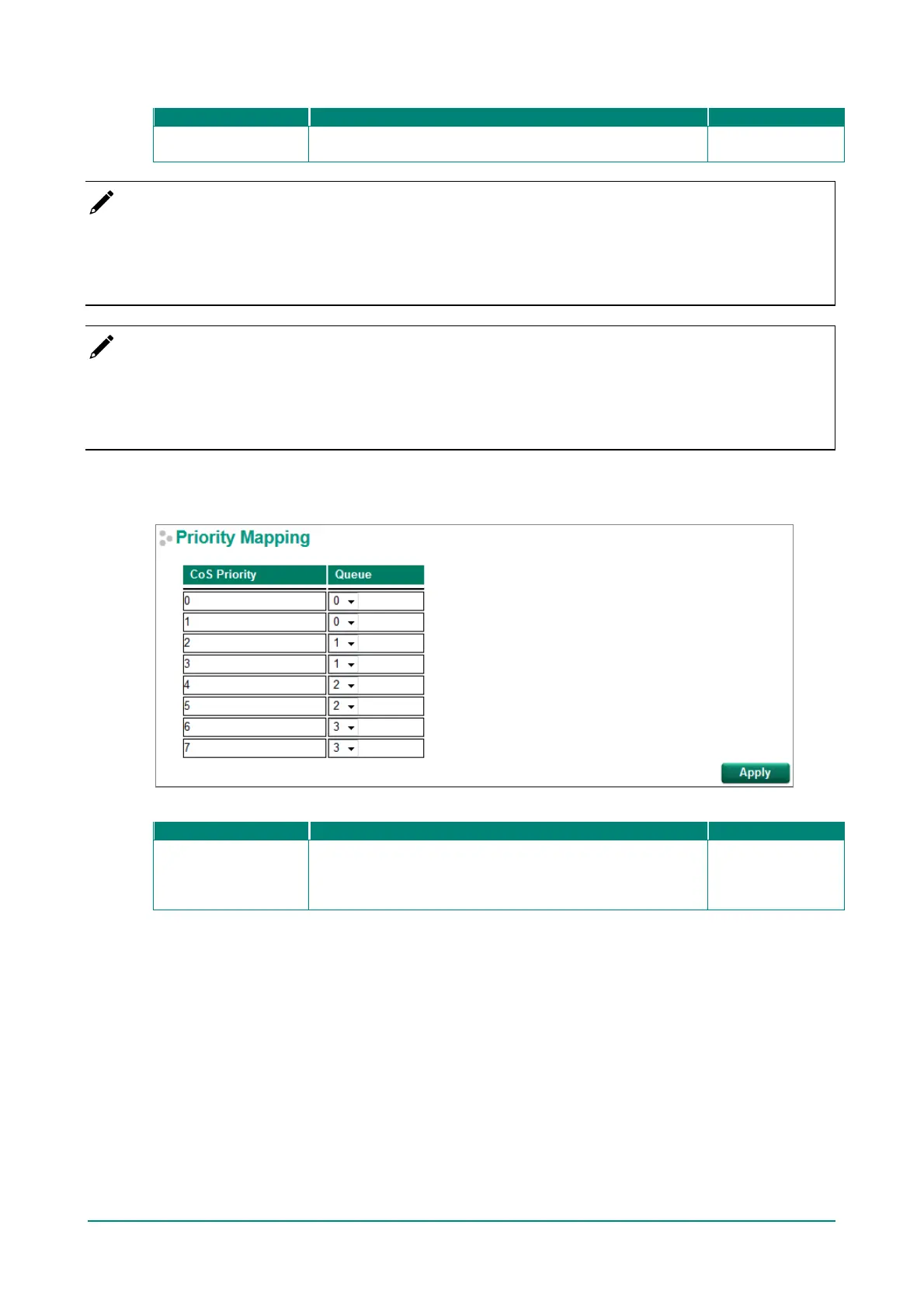

Priority Mapping (Type 1)
CoS Priority and Queues
0 to 3 Maps different CoS values to 4 different egress queues.
CoS 2, 3: 1
CoS 4, 5: 2
To Next Page
