ioLogik E1200 Series Initial Setup
2-3
STEP 2

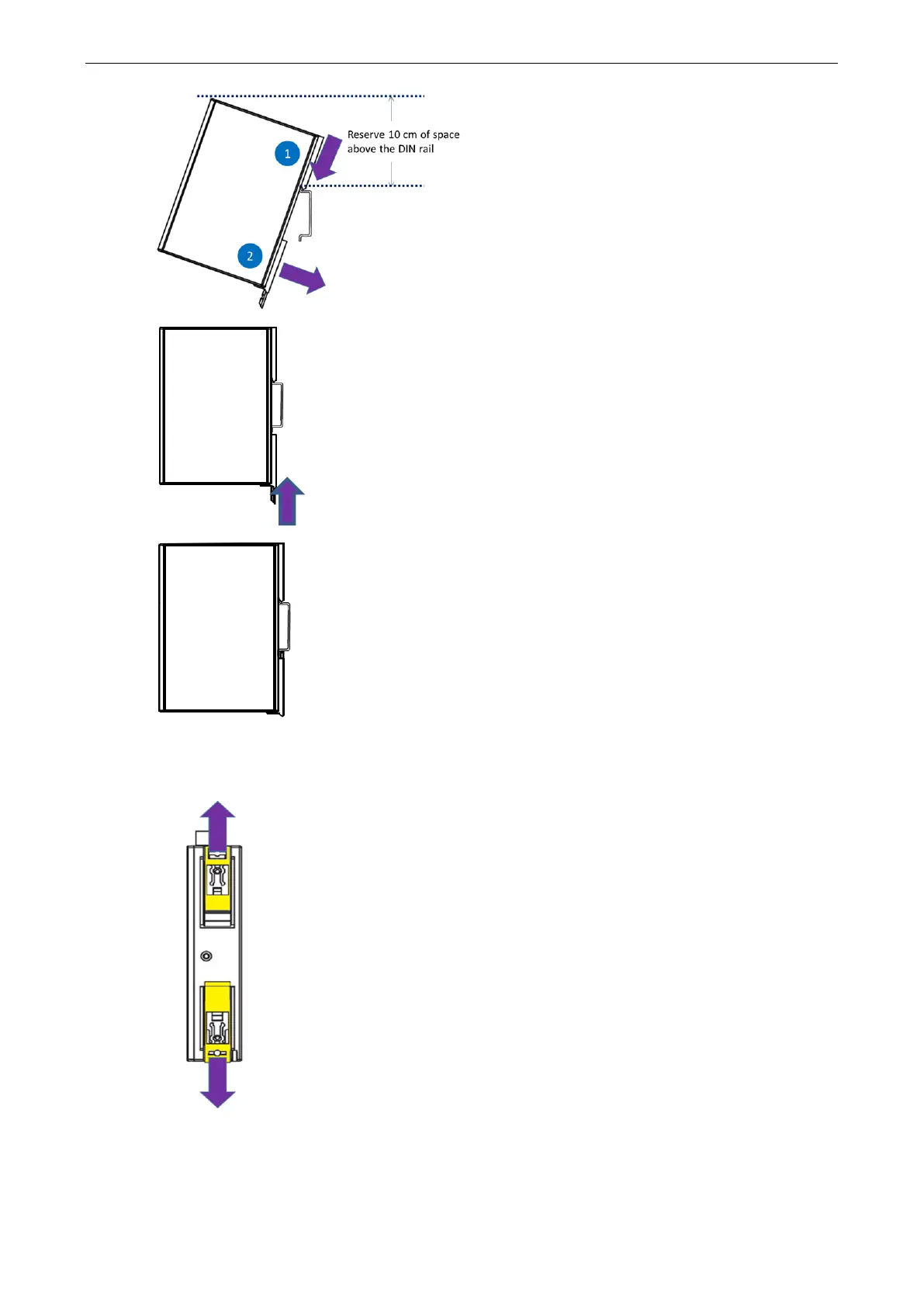

. Latch the top slider of the unit onto the DIN rail
as
shown in the diagram.
Reserve at least 10 cm of space
above
the DIN rail to ensure
that there is enough space to
complete the
installation.
STEP 3.
Rotate the unit down into a vertical position, and then p
ush
the bottom slider
back up to its original position
to lock the unit to
the DIN rail
.
STEP 4.
At this point, if the mounting was done correctly, t
he unit
sh
ould be securely fixed to the DIN Rail.
Wall Mounting
STEP 1. There are two sliders
on the back of the unit, pull out both slider
s out away from the
product
.
