MR TAPCON 230 Expert User Manual

9 Operation
Maschinenfabrik Reinhausen GmbH 2021118 7817454/02 ENTAPCON
®
230 Expert
starts to count down. Once delay time T2 is complete, a control impulse is
again issued to the motor-drive unit for the tap change to return to the tol-
erance bandwidth.

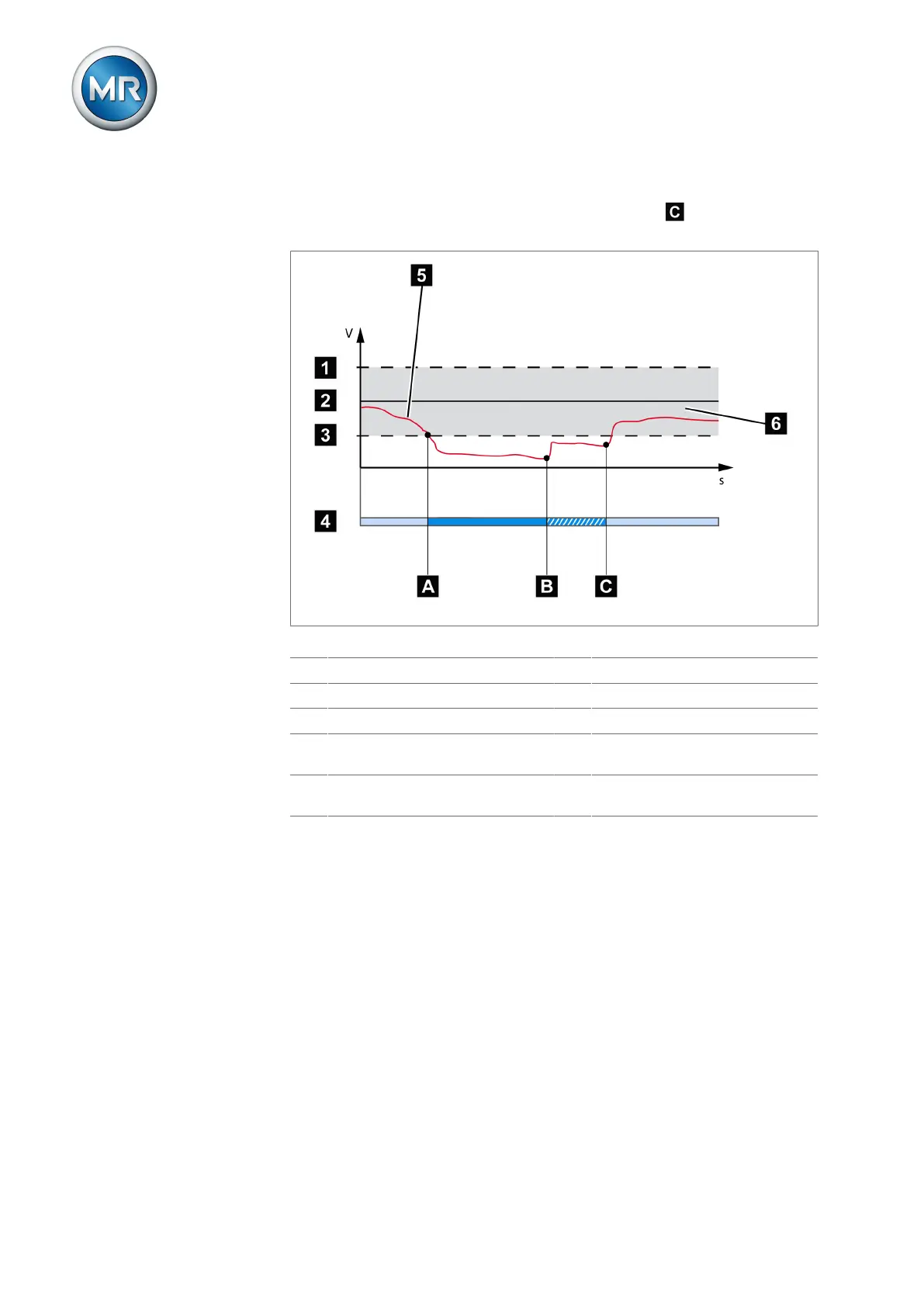

Figure52: Behavior of the regulation function with delay times T1 and T2
1 Upper limit of bandwidth 4 Set delay times T1 and T2.
2 Desired value 5 Control variable measured value
3 Lower limit of bandwidth 6 Bandwidth range
A Control variable is outside of the
bandwidth. Delay time T1 starts.
B Delay time T1 complete. Tap
change triggered.
C Delay time T2 complete. Tap
change triggered.
Activate delay time T2
You can use this parameter to activate or deactivate the delay time T2.
9.3.2 Line drop compensation
You can use the compensation function to compensate for the load-depen-
dent voltage drop between the transformer and consumer. The device pro-
vides 2 methods of compensation for this purpose:
▪ R&X compensation
▪ Z compensation
