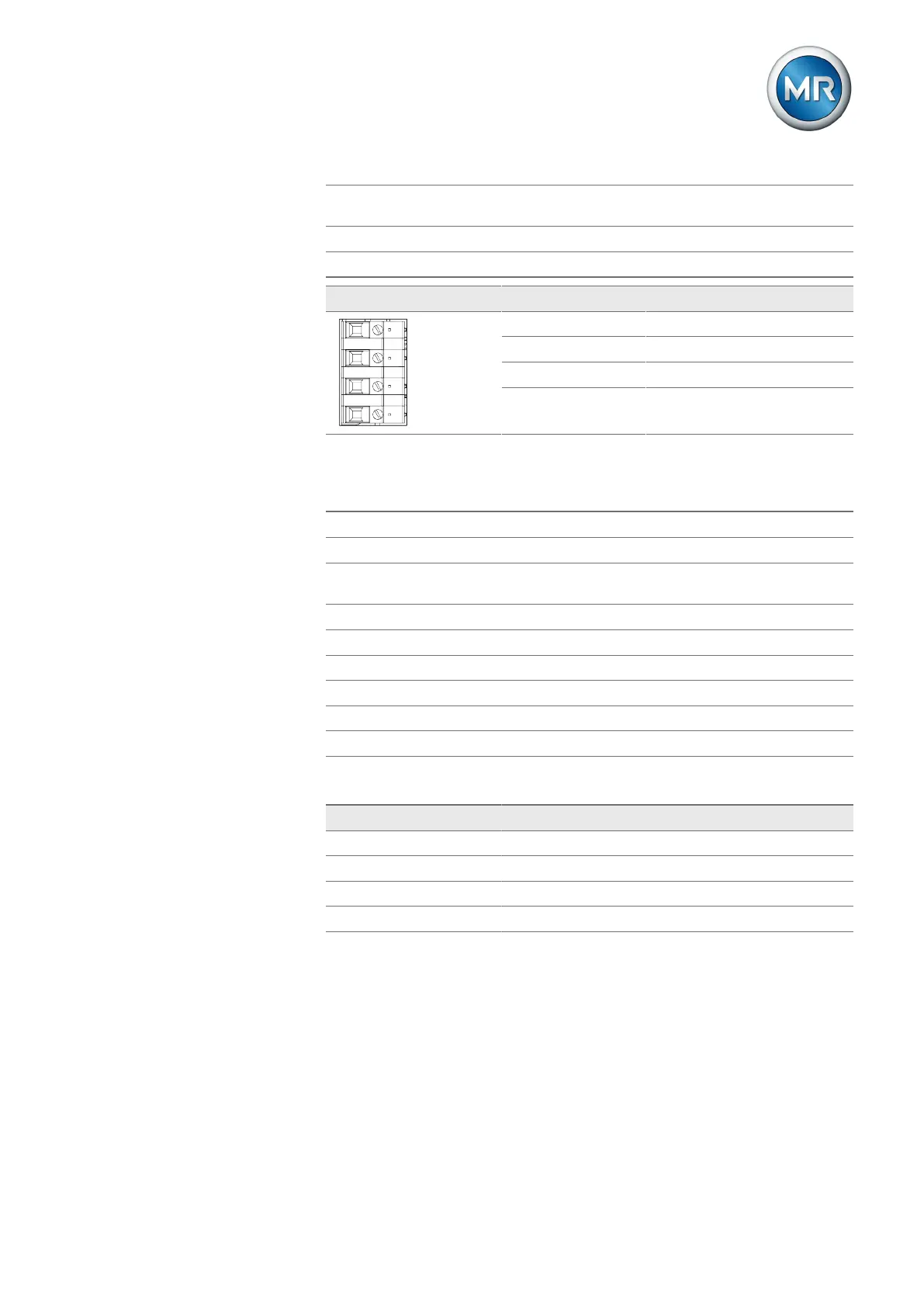

13 Technical data
Maschinenfabrik Reinhausen GmbH 2021 1497817454/02 EN TAPCON
®
230 Expert
Overload capability continu-
ous
12.5A
Overload capacity short-term 500A/1s
Surge test voltage 5kV, 1.2µs/50µs (IEC60255-27)
Interface Pin Description
4 N VT (U
N
: 100/230/400V AC)
3 L VT
2 I CT
1 k CT
Table59: Connection UI:X7
13.6 Central processing unit
Processor ARM Cortex A9 processor 800MHz
RAM 512MB
NVRAM (SRAM with battery
backup)
256kB
Application memory 2GB
Digital relay outputs 2; galvanically isolated
Nominal voltage DC 24/48/60V
Max. continuous current 1A (ohmic load)
Max. switching capacity 30W
Rated impulse voltage 2.0kV
Response behavior of the watchdog/error relay:
Error relay Watchdog relay
Power off OFF OFF
Startup ON OFF
Ready (no error pending) OFF ON
Ready (pending error) ON ON
ON: Relay is energized
OFF: Relay is de-energized
