MSA AirGo - Pneumatic System

GB
MSA Description
AirGo 13
2.3. Pneumatic System
2.3.1. Pressure Reducer

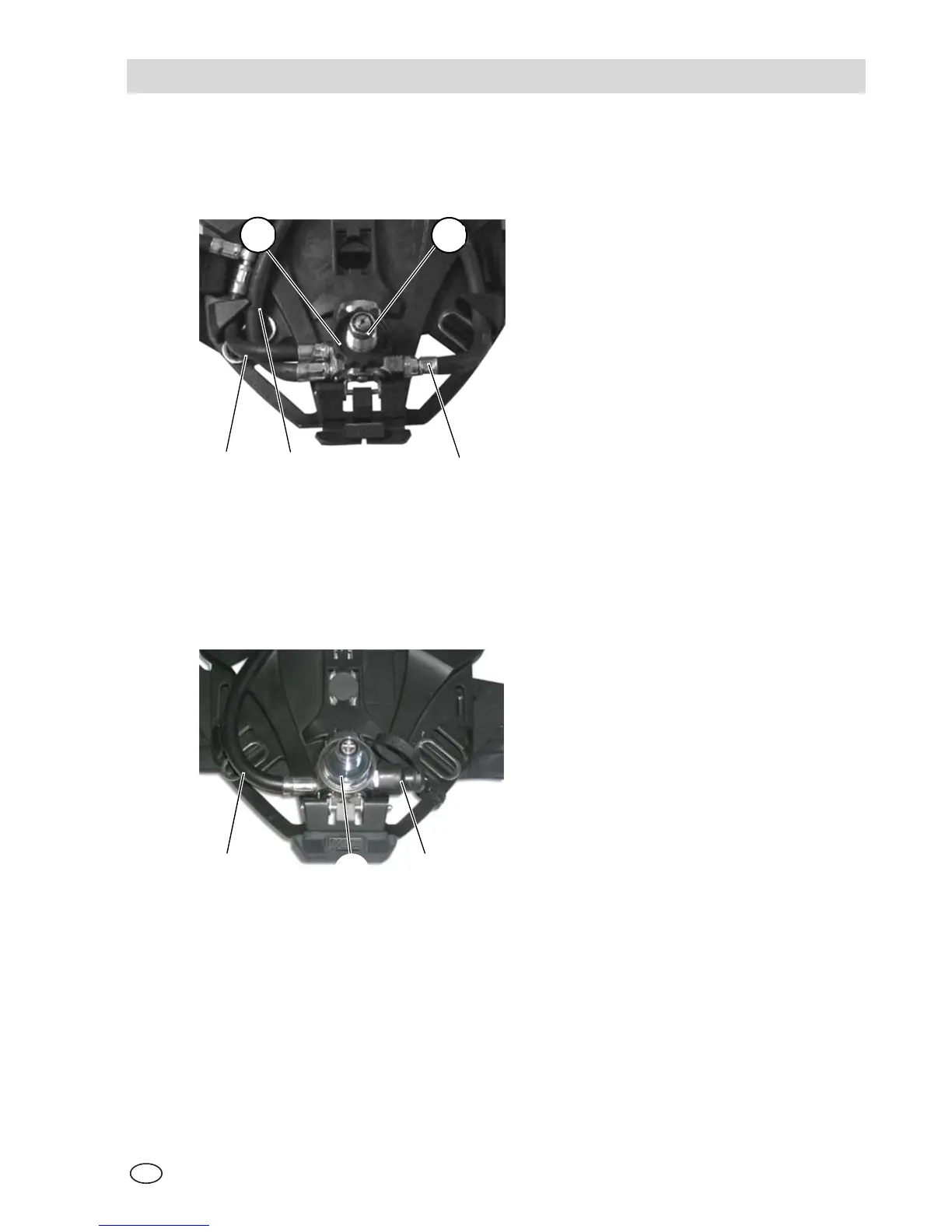

Fig. 2 Pressure reducer classic
1 Pressure reducer
2 Cylinder connection
3 Signal line
4 High pressure line
5 Medium pressure line
Fig. 3 Pressure reducer SingleLine
1 Single line
2 Cylinder connection
3 Quick-Fill coupling (Option)
The pressure reducer is mounted in the lower area of the back plate ( Fig. 1). It
is available in both classic and SingleLine pneumatic versions.
On the pressure reducer, there is a safety valve and the single line for connecting
the manifold. The pressure reducer reduces the cylinder pressure to
approx. 7 bar and the safety valve activates on non-permitted pressure rise to
prevent damage insuring the continued supply of breathable air.
1
5 4 3
2
1
2
3
