4.4.2. Changing the Protection Tunnel

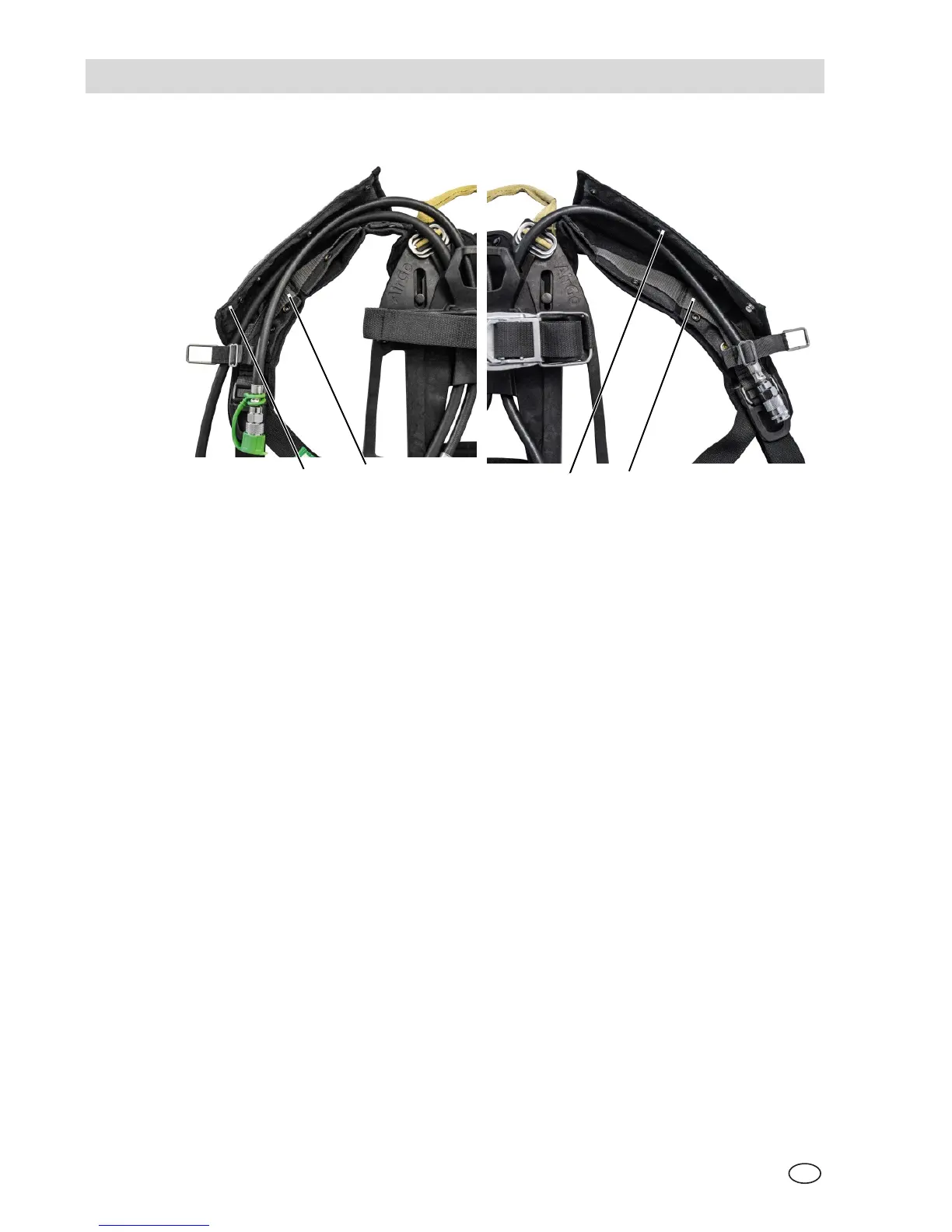

Fig. 35 Protection tunnel with double
buttons
Fig. 36 Protection tunnel with “pull the
dot” button
1 Protection tunnel with double buttons 1 Protection tunnel with “pull the dot”
button
2 Shoulder strap 2 Shoulder strap
(1) Open the “pull the dot” button on the one side (see section 4.3.3) and the
double button on the other side.
(2) Remove the protection tunnels from the shoulder strap.
(3) Slide the protection tunnel under the shoulder strap and under the line
retainer.
(4) Place the line on the shoulder strap.
(5) Close the “pull the dot” button and the double button.
