MSA Description
AirGo 19
2.3.4.4. Option – M – with alphaMITTER (short distance transmitter)

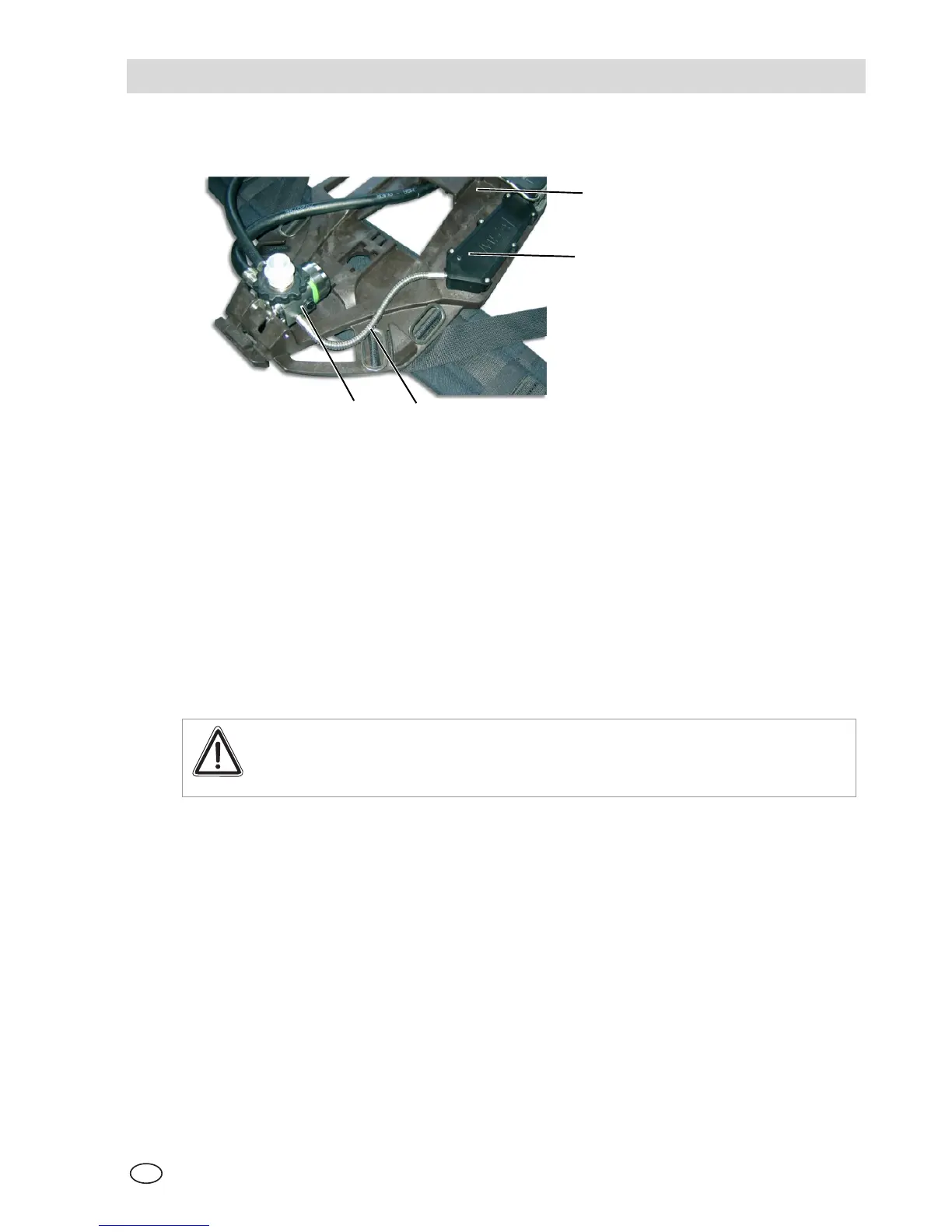

Fig. 10 alphaMITTER
1 Back plate 3 High pressure line
2 alphaMITTER 4 Pressure reducer
The alphaMITTER is a short range transmitter which is mounted on the back
plate of the compressed air breathing apparatus.
A high pressure line is used for the connection of the alphaMITTER to a
dedicated port of the pressure reducer. It measures the high pressure in the
compressed air cylinder(s) and transmits every second to the alphaSCOUT of the
alpha personal network.
The power supply for the alphaMITTER is provided by 3 Alkaline batteries.
Attention!
The power supply should only be provided by certain types of battery
for reasons of explosion prevention.
For detailed information on the alphaMITTER Operating Manual for
"alpha personal network".
