Description MSA
20
AirGo
2.3.5. classic Pneumatics
Option – CL
classic pneumatics are available in options -S, -Z, -ICU, -C3.
The individual high pressure and medium pressure lines are routed separately
from the pressure reducer to the individual end units or connections.
The lung governed demand valve or the coupling to the lung governed demand
valve is located at the end of the medium pressure line.
The pressure gauge ( Fig. 11) or the ICU ( Fig. 15) is fitted at the end of the
high pressure line.

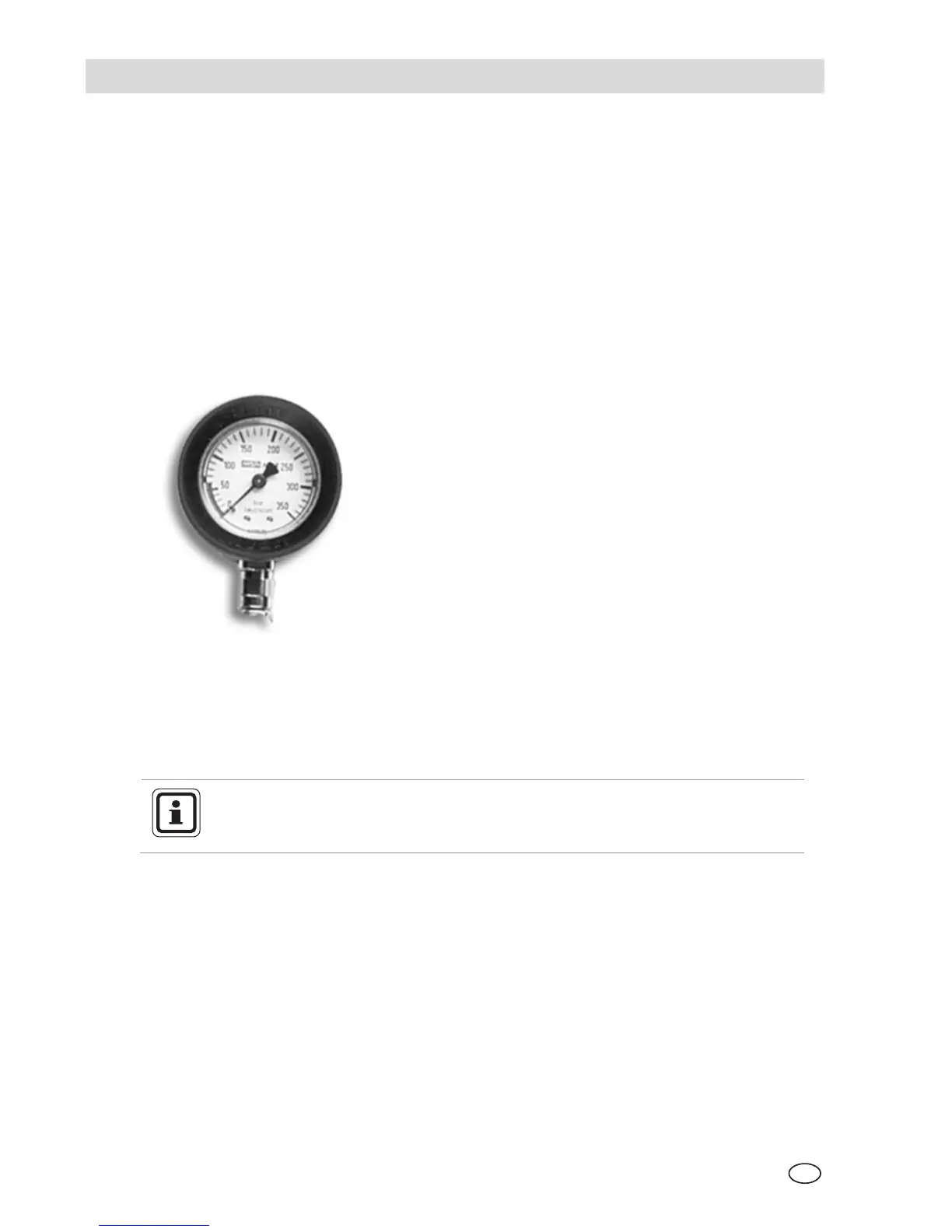

Fig. 11 Pressure gauge
The pressure gauge indicates the momentary pressure in the connected and
opened compressed air cylinders.
Option – CM
The option CM of the classic pneumatics has the same basic
characteristics as the CL option, but can be operated with an
alphaMITTER.
