3.3. Connecting Two Compressed Air Cylinders
3.3.1. Pressure Reducer with Thread Connection

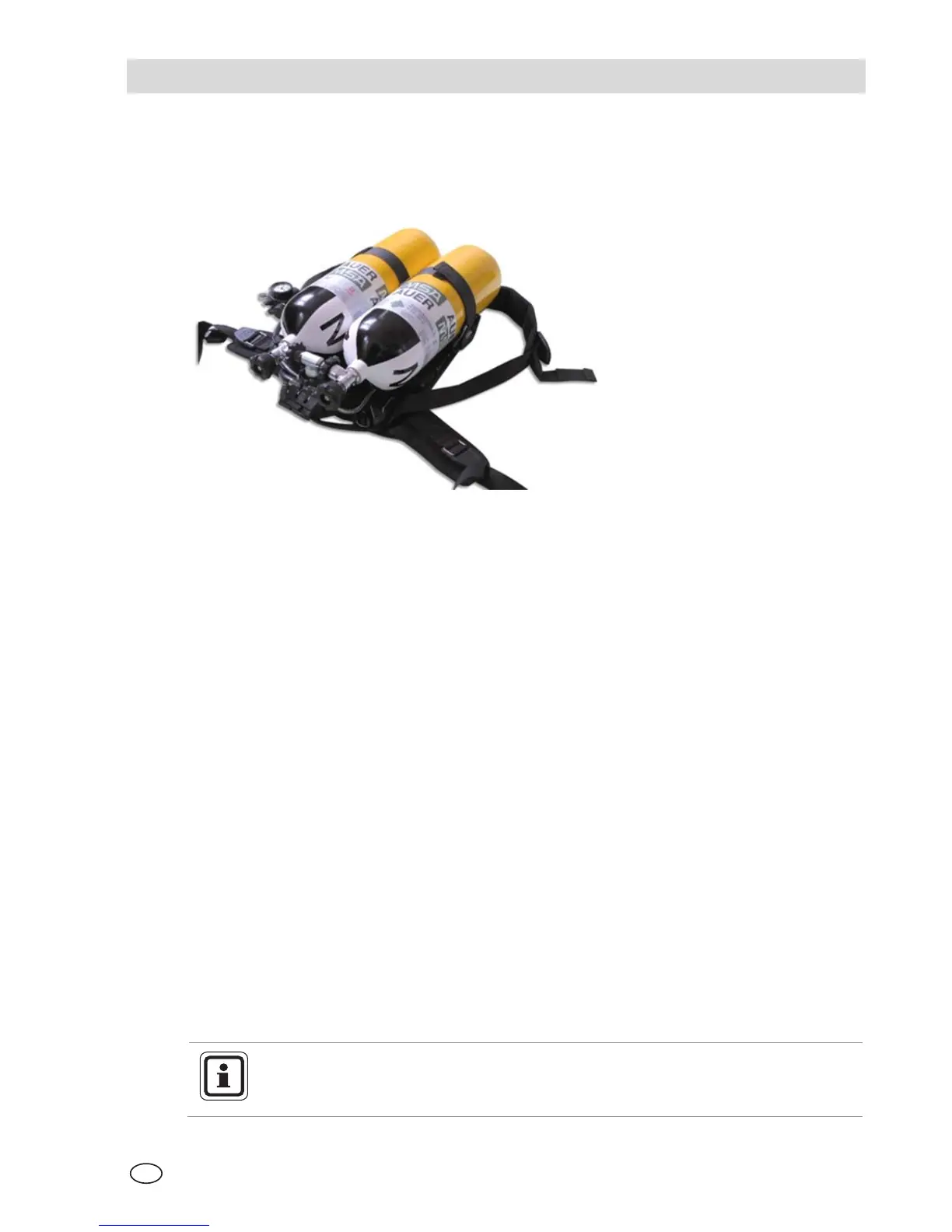

Fig. 21 SCBA apparatus with two compressed air cylinders
3.3.1.1. Preparing the Apparatus for Use with Two Compressed Air Cylinders
(1) Hinge up the cylinder separator to a vertical position in the middle of the
cylinder support until it catches.
(2) Connect T-piece to high pressure socket of pressure reducer.
3.3.1.2. Connecting Two Compressed Air Cylinders
(1) Place compressed air breathing apparatus horizontally so that the back face
is uppermost ( Fig. 17).
(2) Hinge cylinder separator (1) into a vertical position until it catches.
(3) If there is no T-piece connected to the pressure reducer, check gaskets on
the pressure reducer and T-piece and thread in T-piece loosely.
(4) Open cylinder buckle on the cylinder strap eliminating any tension by
extending the strap to full length pulling the small bar at the cylinder buckle
( Fig. 19).
(5) Push one compressed air cylinder through the cylinder retaining strap so
that the cylinder valve points to the T-piece and lies on one of the outer
supports.
(6) Loosely thread the cylinder valve onto the T-piece.
(7) Push a second compressed air cylinder through the cylinder retaining strap
so that the cylinder valve points to the T-piece and lies on the outer support.
(8) Loosely thread the second cylinder valve onto the T-piece.
With right-angled T-piece, align the compressed air cylinders by hinging
the pressure reducer and pulling the cylinders together (see Operating
Manual for T-pieces).
(9) Tighten all three high pressure connection handwheels.
