2.3.2. SingleLine Pneumatics
SingleLine pneumatics are available in options -Q, -M, -SI, -SII, -3C/3N, -C3.
The SingleLine pneumatics combines up to five hoses in one. This incorporates
the lines for the lung governed demand valve, the pressure gauge, warning signal
and second connection in a single line.
2.3.3. Manifold

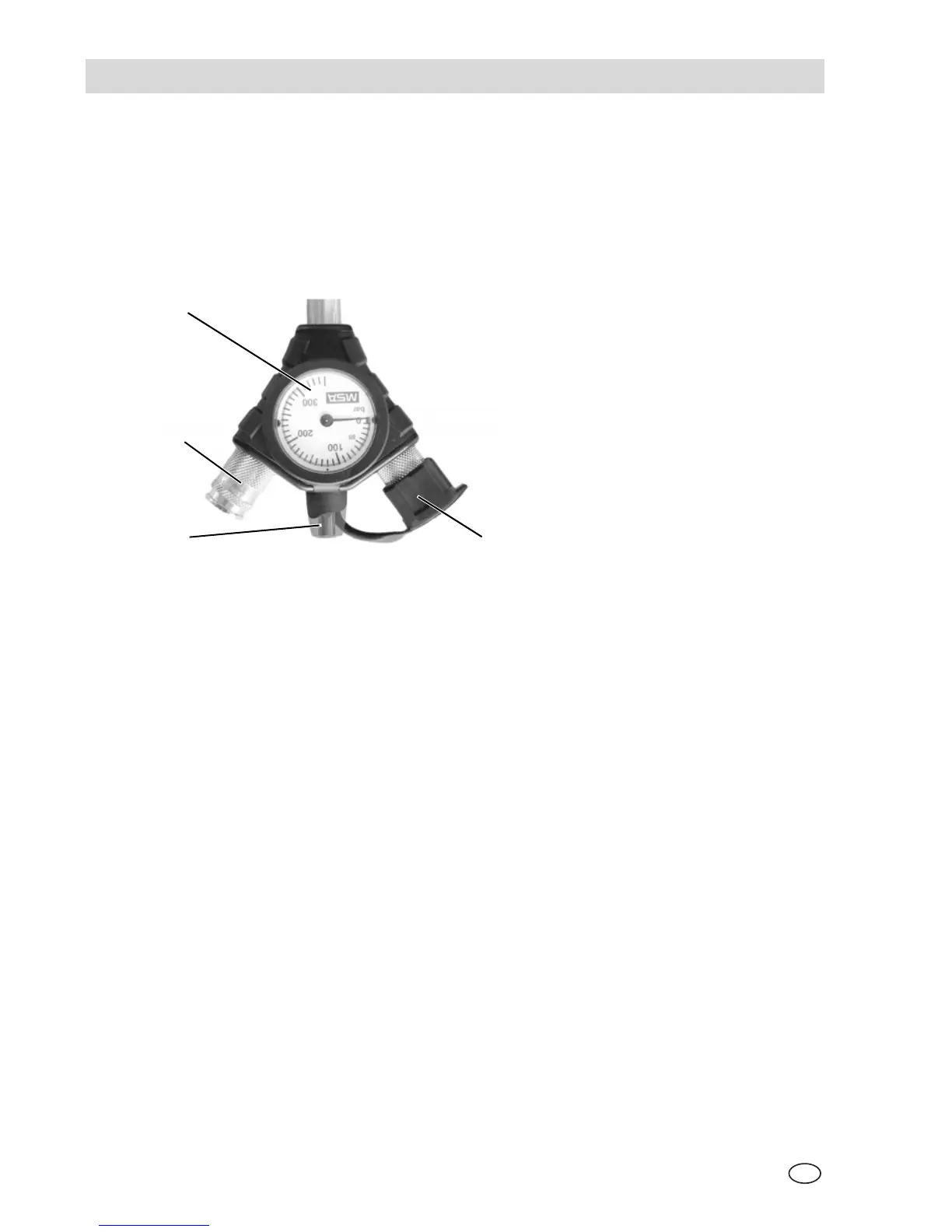

Fig. 4 Manifold
1 Pressure gauge 3 Warning signal (signal whistle)
2 Lung governed demand valve coupling 4 Second connection
In SingleLine Pneumatics, the end of the single line is connected to manifold. It
consists of the pressure gauge itself, the coupling for the lung governed demand
valve as well as an acoustic warning device (signal whistle). It triggers a
continuous warning signal when the cylinder pressure drops below 55±5 bar.
The second connection connects a second lung governed demand valve
(e.g. rescue set).
2.3.4. SingleLine SCOUT
See additional manual SingleLine SCOUT.
