MSA Maintenance and Care
AirGo 51
4.4.5.2. Option pro without Swivelling Plate
In this option the hip belt is mounted to the back plate without a swivelling plate
using the hip belt slots ( Fig. 33).
The hip belt with padding is shown in Fig. 41.

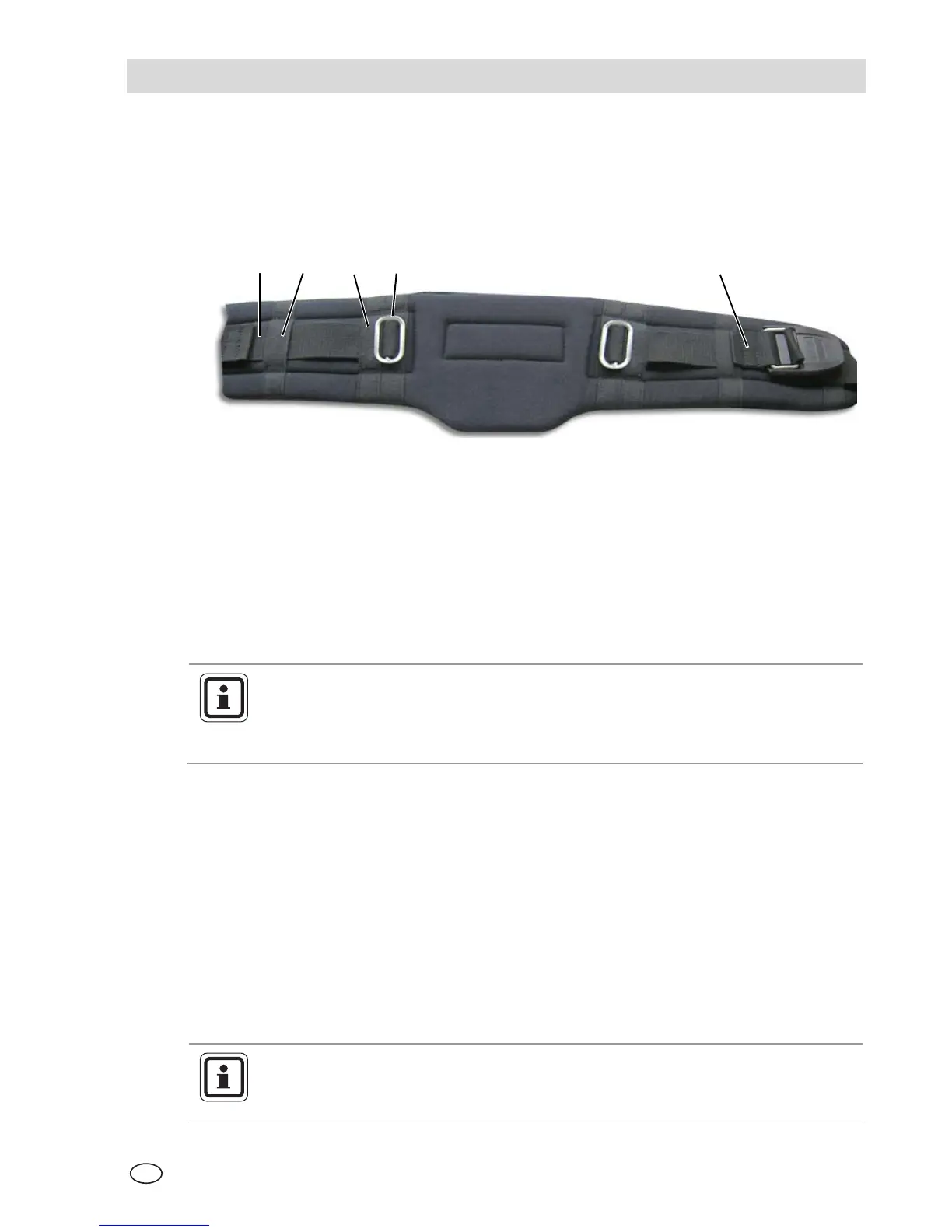

Fig. 41 Hip belt without swivelling plate
1 Hip belt with padding 4 Buckle
2 Outer loop 5 Back stop
3 Middle loop
Disassembling
(1) Remove the metal buckles from the back plate.
(2) Remove the left and the right hip belt from the padding.
Assembling
When assembling ensure that the belt is mounted correctly using the
outer and middle belt loops on both sides of the padding.
Do not use the inner loops for mounting the belt. These loops are for
mounting the swivelling hip plate.
(1) Thread the metal buckles and the belt as shown in Fig. 41 through the outer
and middle loops of the belt padding.
(2) Mount the metal buckles in the hip belt slots at the back plate.
4.4.5.3. Options com and mix
In these options the hip belt without additional padding is mounted to the back
plate using the hip belt slots ( Fig. 34).
The hip belt is fixed at the back plate by the back stops.
(1) Remove a belt buckle at one of the ends of the hip belt.
(2) Remove the hip belt from the back plate threading the back stops through
the mounting slots.
When assembling ensure that the pressure lines are located between
the hip belt and the back plate.
Ensure that the belt is fixed correctly by the back stops.
(3) Assemble in reverse order.
1
5
4
