GB
Maintenance and Care MSA
52
AirGo
4.4.6. Changing the Cylinder Strap
4.4.6.1. Long Cylinder Strap
Disassembling
(1) Remove metal bracket from tension lever by slightly spreading it and take it
out of belt.
(2) If necessary, align cylinder separator vertically.
(3) Thread cylinder strap through cylinder separator.
(4) Push off adjustable Velcro strap from cylinder strap.
(5) Thread end of cylinder strap through the back plate and remove cylinder
strap from back plate.
Assembling

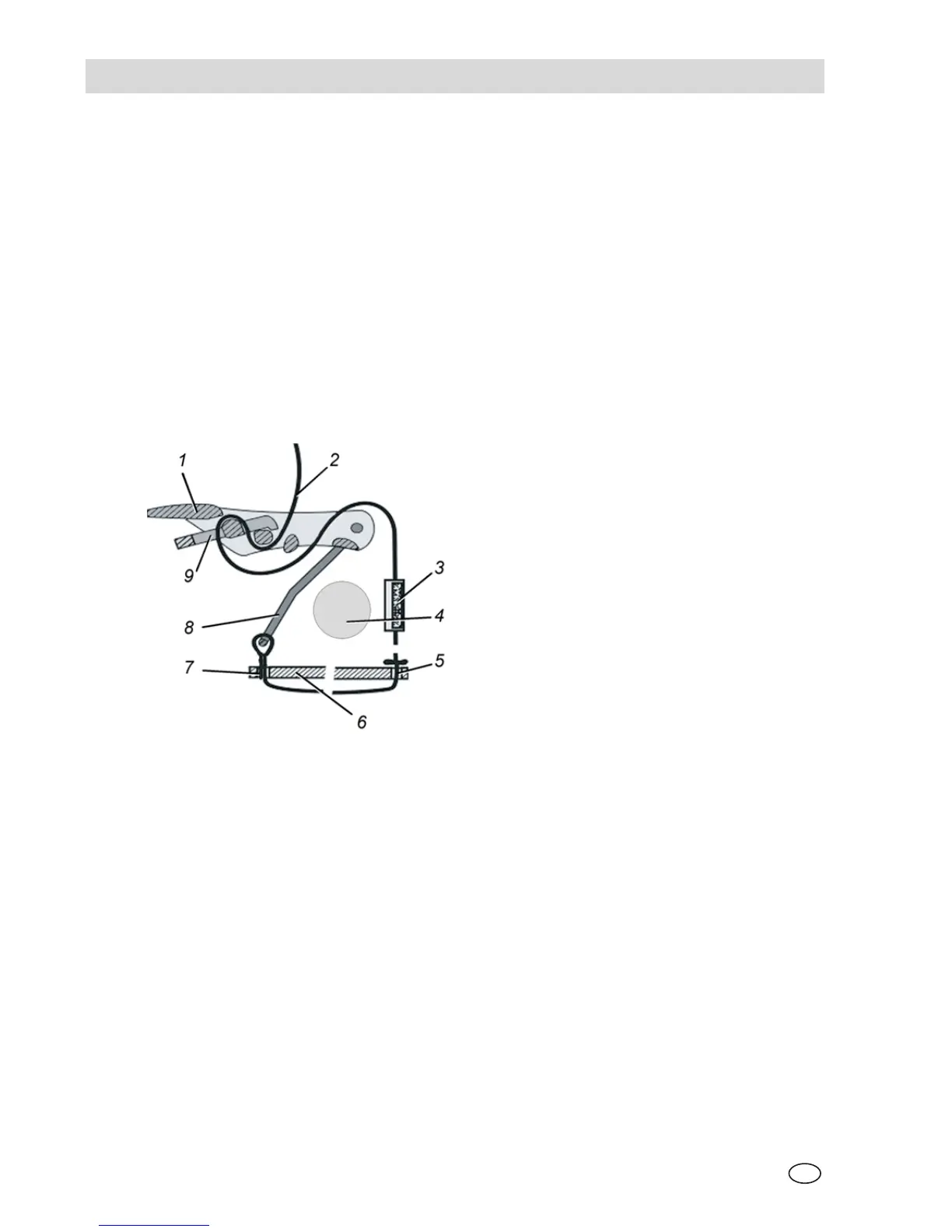

Fig. 42 Long cylinder strap
1 Tension lever 6 Back plate
2 Cylinder strap 7 Right hand slot in the back plate
3 Velcro strap 8 Metal bracket
4 Cylinder 9 Bracket
5 Left hand slot in the back plate
(1) Thread the cylinder strap ( Fig. 42) firstly through the slot in the back plate
(on the right hand side of the equipment carrier), then through the left hand
slot in the back plate and then through the cylinder bracket - align the
cylinder bracket vertically.
(2) Push the Velcro strap onto the cylinder strap with the fluffy side facing
outwards
