4.4.6.2. Short Cylinder Strap
Disassembling
(1) Remove metal bracket from tension lever by slightly spreading it and take it
out of belt.
(2) Push off adjustable Velcro strap from cylinder strap.
(3) Thread end of cylinder strap through the back plate and remove cylinder
strap from back plate.
Assembling

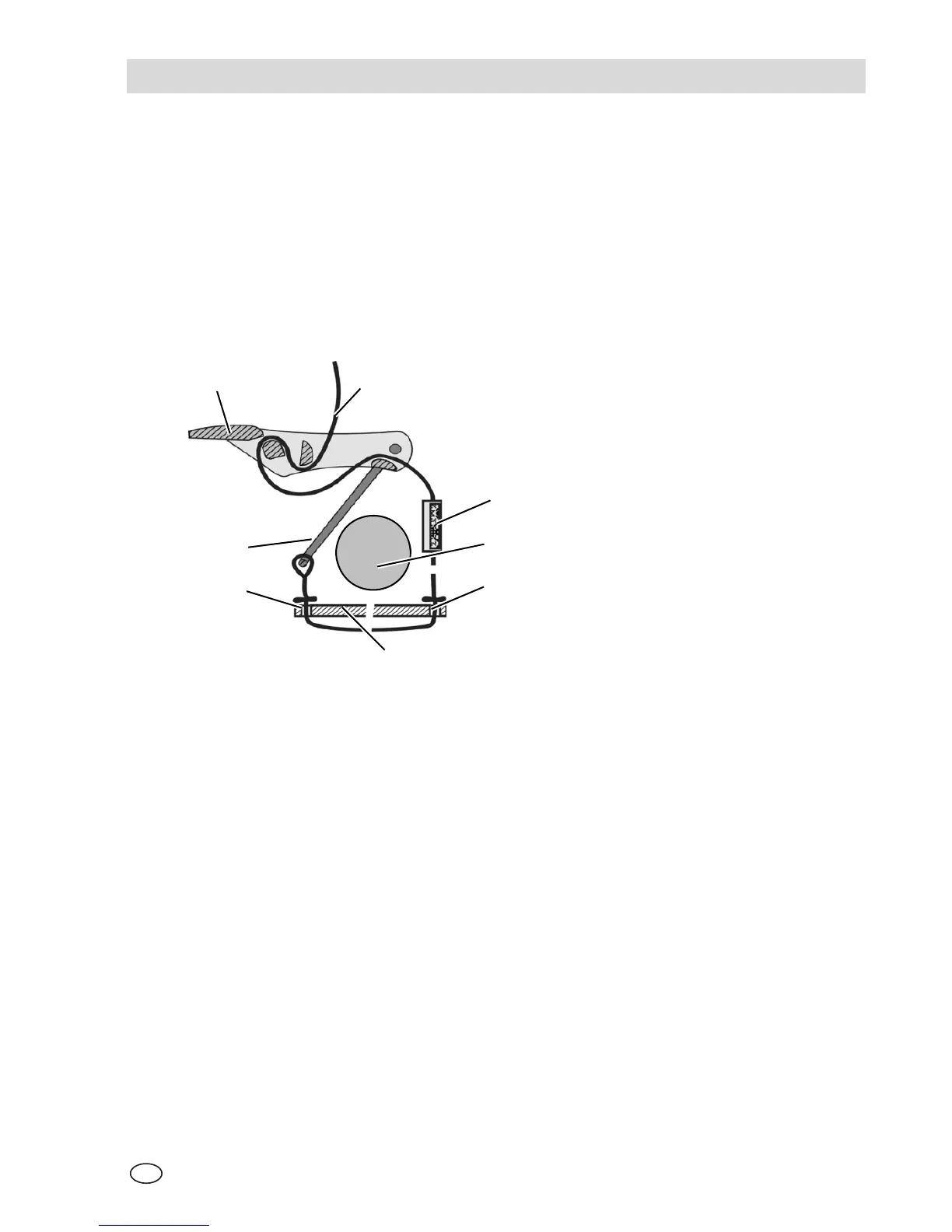

Fig. 43 Short cylinder strap
1 Tension lever 5
Left hand slot in the back plate
2 Cylinder strap 6 Back plate
3 Velcro strap 7 Right hand slot in the back plate
4 Cylinder 8 Metal bracket
(1) Thread the cylinder strap ( Fig. 43) firstly through the slot in the back plate
(on the right hand side of the equipment carrier), then through the left hand
slot in the back plate and then through the cylinder bracket - align the
cylinder bracket vertically.
(2) Push the Velcro strap onto the cylinder strap with the fluffy side facing
outwards.
4.4.6.3. alphaBELT and alphaFP
Information about changing can be found in the alphaBELT und alphaFP
operating manuals.
