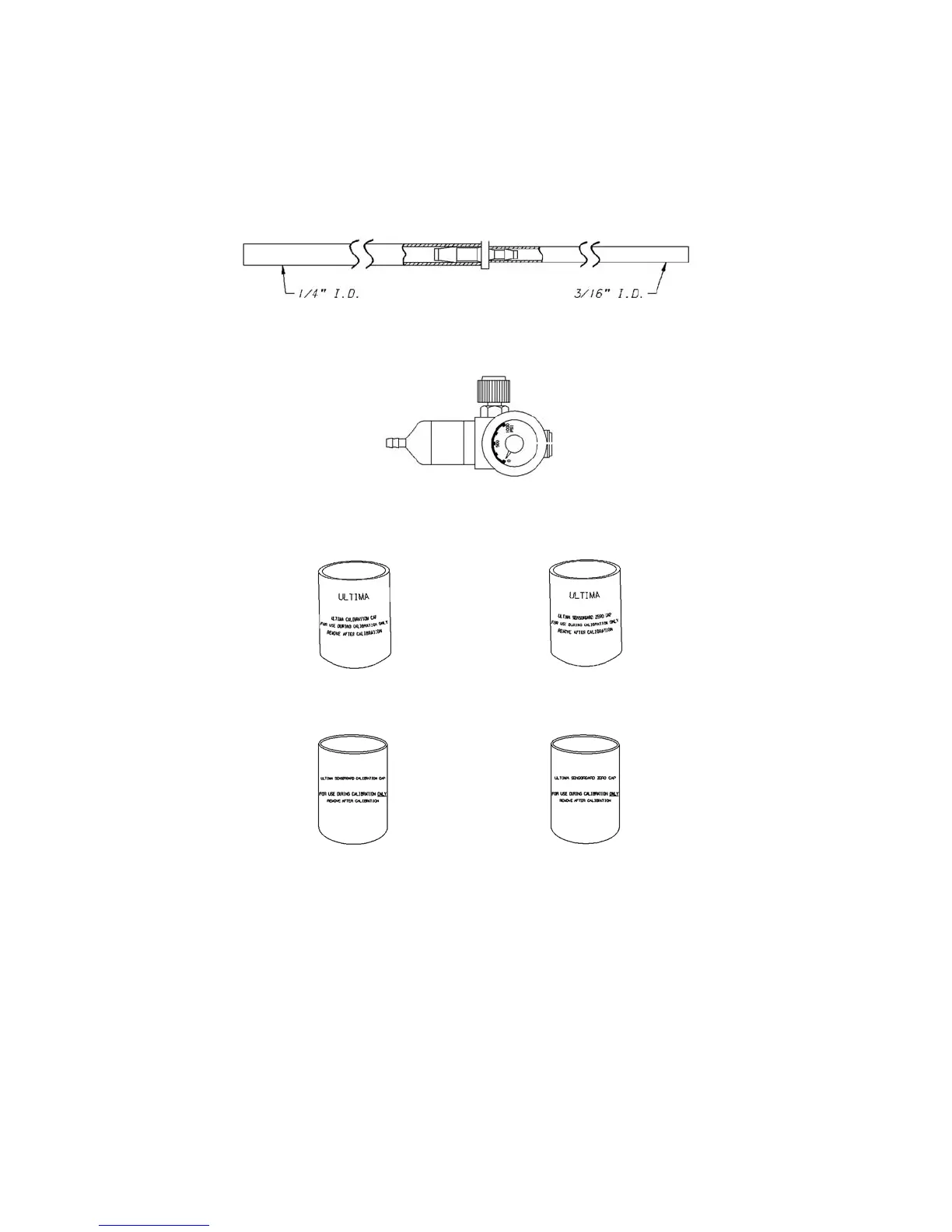

Figure 2-2. Calibration Kit 41 Contents
(Your Kit may also include one or two gas cylinders)
Item 5 - Calibration Cap
(P/N 10020030)
Item 6 - Zero Cap
(P/N 710535)
Item 3 - Calibration Cap
(P/N 710411)
Item 4 - Zero Cap
(P/N 813774)
Item 2 - .25 LPM Flow
Controller (P/N 478359)
Item 1 - Tubing (P/N 711112)
- 3/16" side connects to Item 2
- 1/4" side connects to sensor
2-5
