NS50 wireless network switch
User Manual
Revision C
Chapter 1: Understanding the NS50
© 2012 MST Global
Commercial in Confidence
6
Fibre optic cabling provides numerous benefits over Ethernet cabling, with superior signal integrity
and no signal interference from high powered electronics. It also enables units to be spaced over
longer distances without the distance limitation of Ethernet cabling.
By default, port 1 is configured as the upstream port and ports 2, 3 and 4 as the downstream ports.
The difference between upstream and downstream ports is the orientation of the fibre that is used for

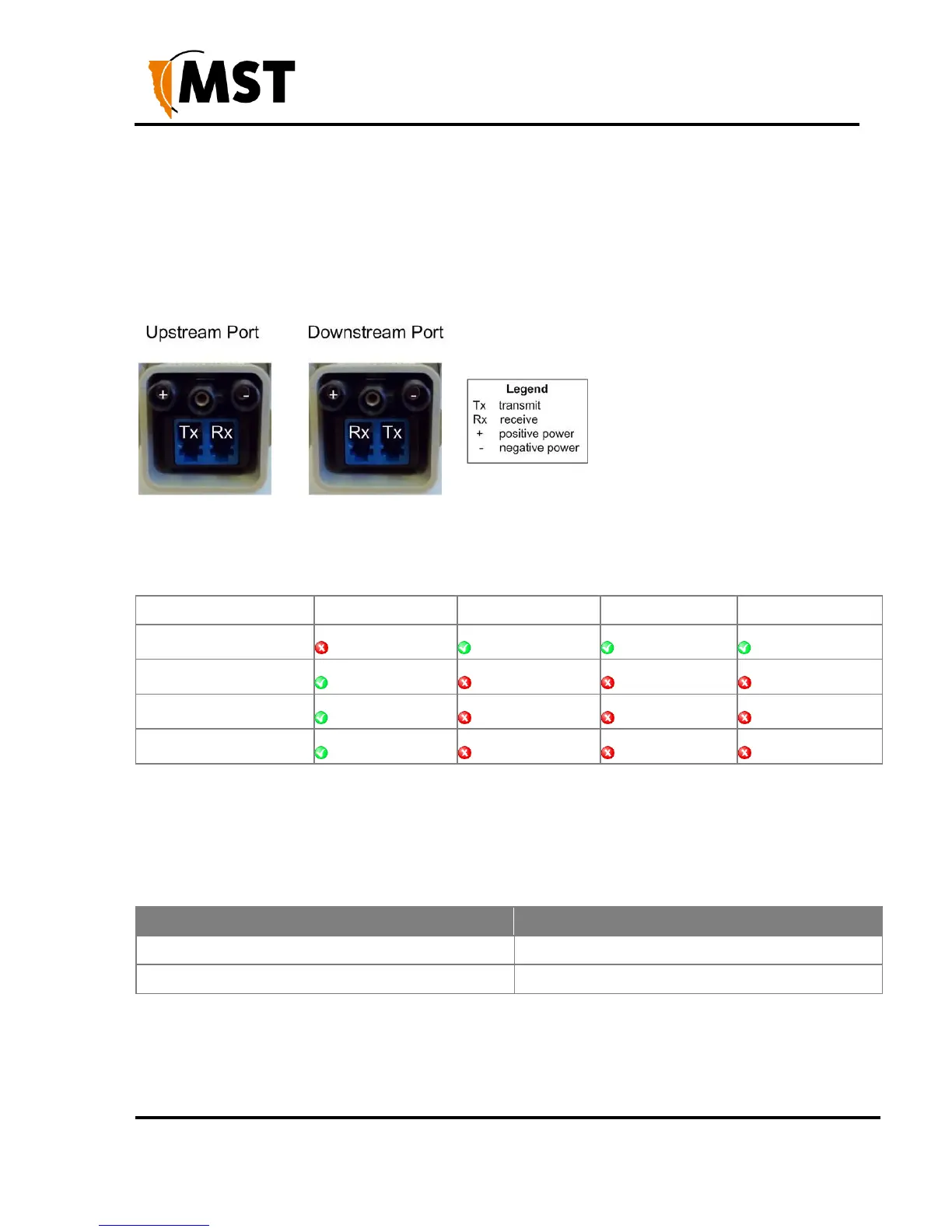

transmitting data and the fibre used for receiving data. This is illustrated in Figure 4: Fibre orientation
of Upstream and Downstream ports.
Figure 4: Fibre orientation of Upstream and Downstream ports
Due to the difference in the fibre orientation, MST composite cable and fibre optic cable can only be
connected between ports on NS50 devices marked with a tick in the matrix below.
Port 1
Port 2
Port 3
Port 4
Port 1
Port 2
Port 3
Port 4
Single- and Multi-Mode Cables
The NS50 is supplied from the factory with 1000BASE-LX single-mode SFP modules. Customers
wishing to interface to other cable standards, e.g. 100BASE-FX single or multi-mode, should contact
MST to arrange replacement of the appropriate SFP modules.
SFP Part Number (MST Order Number)
Description
W-SFP-LS38-A3S
Single-mode 100BASE-FX SFP module
W-SFP-LM38-A3S
Multi-mode 100BASE-FX SFP module
