NS50 wireless network switch
User Manual
Revision C
Chapter 3: Installation
© 2012 MST Global
Commercial in Confidence
15
3.1 NS50 Mounting Options
Standard mounting options for the NS50 are described in the table below.
Application
Installation
Mounting the NS50 to a rock bolt
The NS50 has two 25mm holes to mount to a rock
bolt in the mine's rock face. It is secured to the
rock bolt with a 25mm nut.
Mounting the NS50 to the mesh
The four corner mounting points on a mounting
plate can be cable-tied to the mesh in a mine
tunnel.
3.2 Antenna Mounting Options
Antenna mounting is dependent on the location and coverage required. Examples of antenna
installation options are described and illustrated in the table below.
Mounting Option
Description

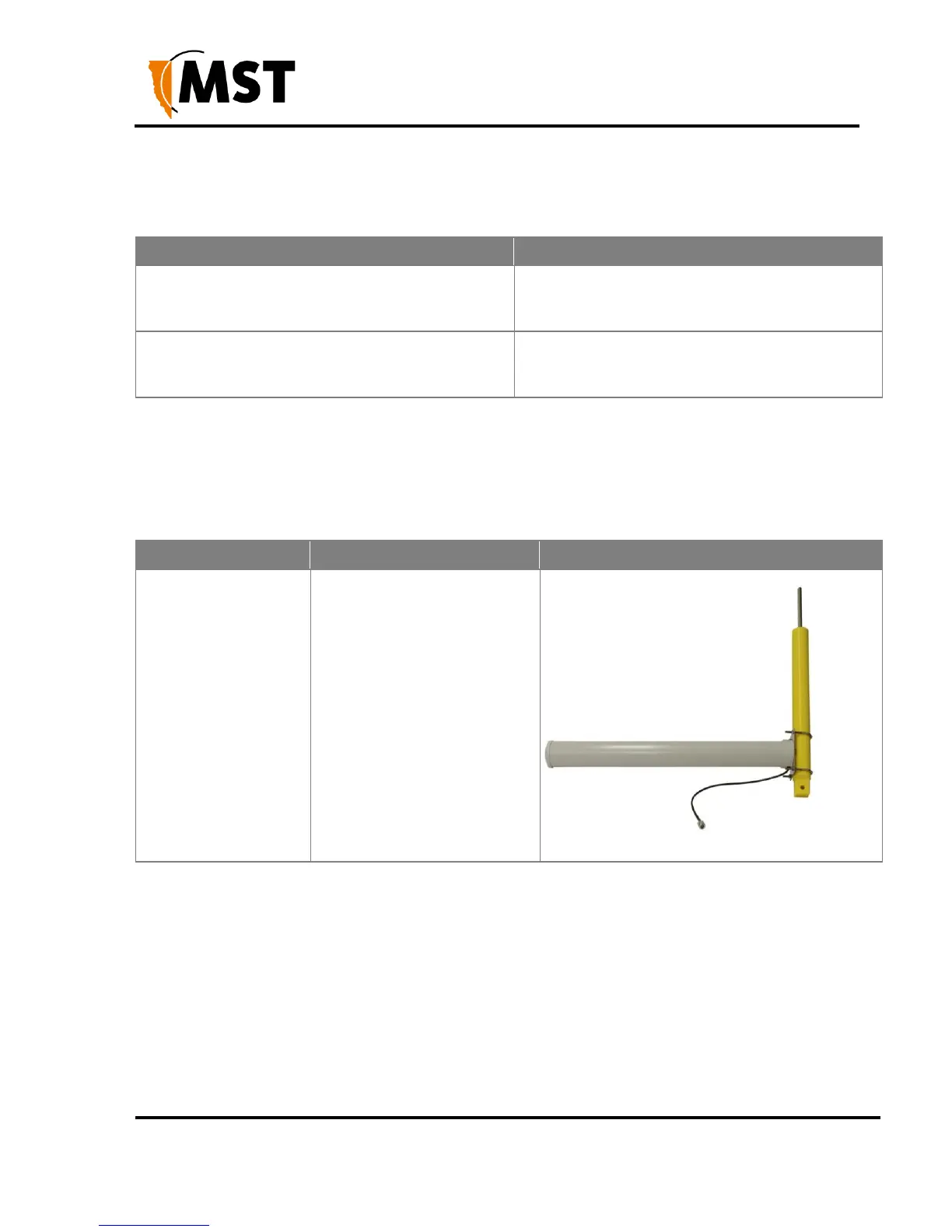

Mounting a Yagi
antenna or panel
antenna to the mine
tunnel roof.
1. The Yagi antenna is
attached to the mounting
pole using U-clamps and
nuts.
2. A threaded metal bar is
screwed into the
mounting pole.
3. A hole is drilled into the
tunnel roof and the
mounting pole is secured
using chemset adhesive.
