NS50 wireless network switch
User Manual
Revision C
Chapter 5: Configuration Using the Web Interface
© 2012 MST Global
Commercial in Confidence
46
5.3.4 Viewing Network Traffic Statistics
The Statistics status screen provides network traffic statistics for the WAC's LAN interface and each of
the wireless SSIDs.

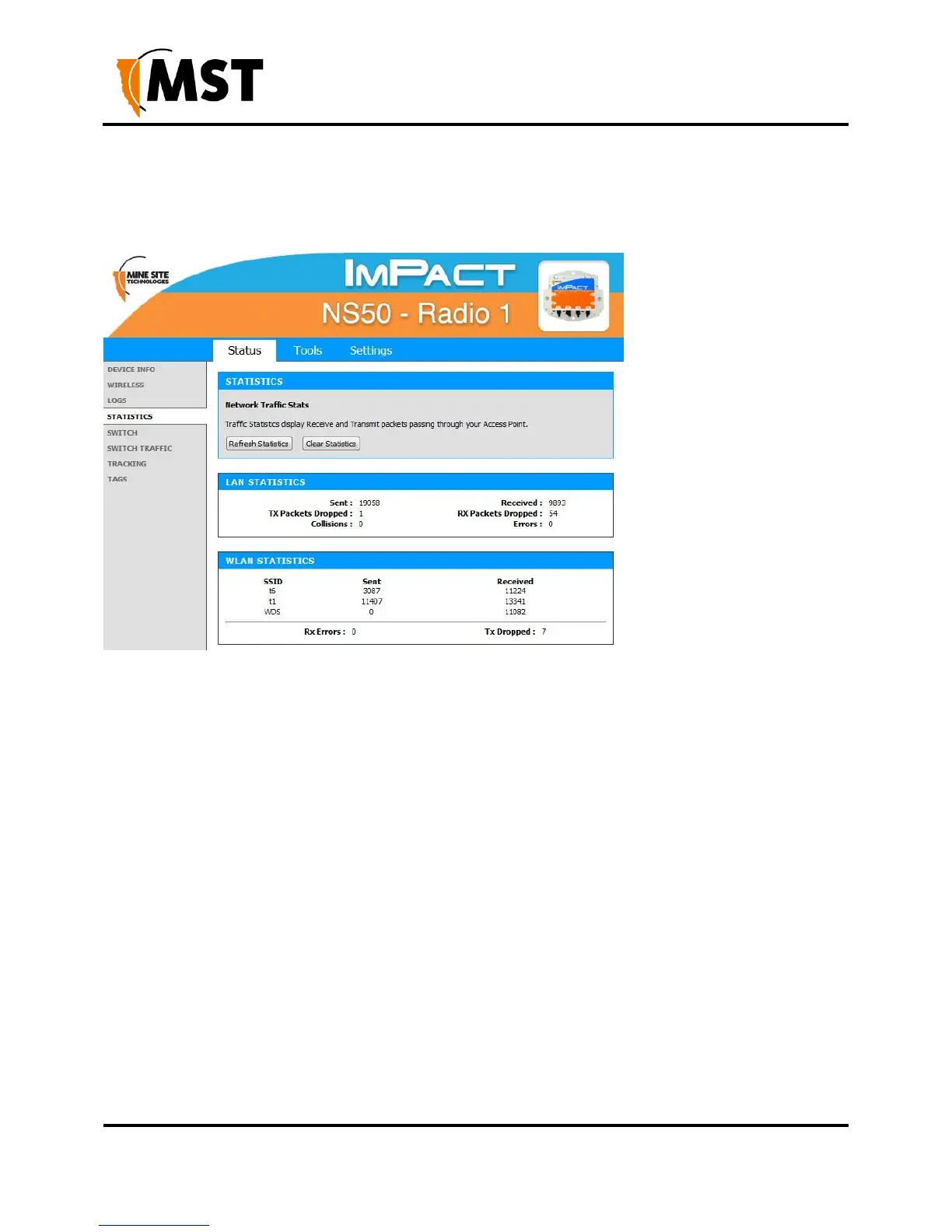

Figure 22: Statistics status screen
To view statistics:
1. Click Refresh Statistics to update the statistics.
2. Click Clear Statistics to clear displayed statistics. A reset confirmation dialog box is
displayed.
3. Click OK.
The following parameters are displayed:
LAN STATISTICS
Sent: The number of frames sent out from NS50 via all physical network interfaces (Ethernet and
Fibre).
Received: The number of frames received by the NS50 via all physical network interfaces.
TX Packets Dropped: The number of frames dropped while being sent to the switch processor,
due to errors, collisions, or network switch resource limitation.
RX Packets Dropped: The number of frames dropped while being received from the switch
processor, due to errors, collisions, or network switch resource limitation.
Collisions: The number of frames dropped due to Ethernet collisions.
Errors: The number of transmission failures that caused the loss of a packet.
