NS50 wireless network switch

User Manual

Revision C

Chapter 5: Configuration Using the Web Interface

Commercial in Confidence

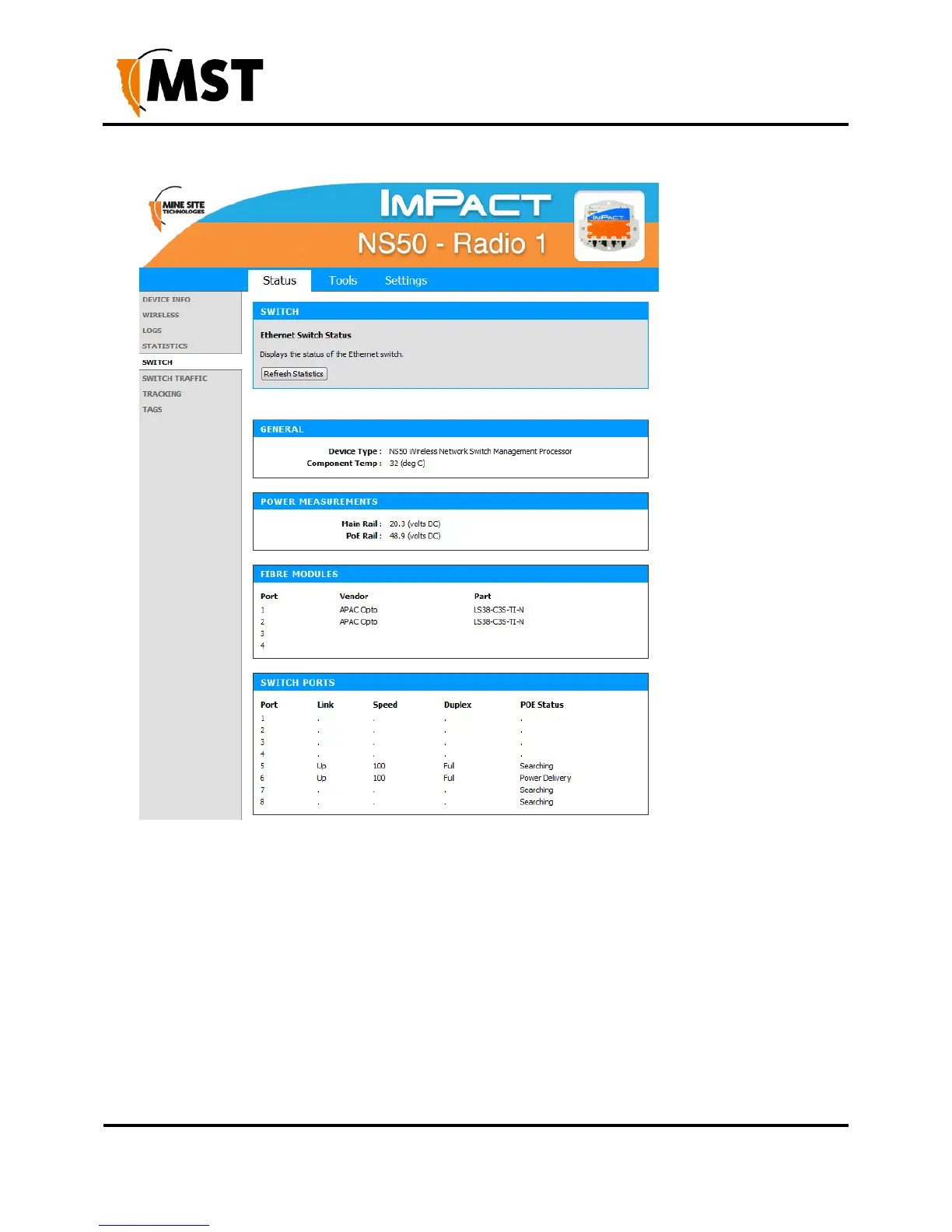

Figure 23: Switch status screen

5.3.6 Viewing Switch Traffic

The Switch Traffic screen shows current traffic statistics for each network port.
