NS50 wireless network switch
User Manual
Revision C
Chapter 1: Understanding the NS50
© 2012 MST Global
Commercial in Confidence
2
1.1 Hardware Overview
The features and functions of the NS50 are illustrated in Figure 1: NS50 layout and the
accompanying table.
NOTE: The NS50 has four slightly different models:
• NS5001 - 1 Radio port, 2 Fibre ports
• NS5002 - 2 Radio ports, 2 Fibre ports
• NS5003 - 1 Radio port, 4 Fibre ports
• NS5004 - 2 Radio ports, 4 Fibre ports
This manual is written for the NS5004. If you have one of the other models, there may be
slight differences. Please note that these models have different internal hardware, and it is
not possible to upgrade one model into another.

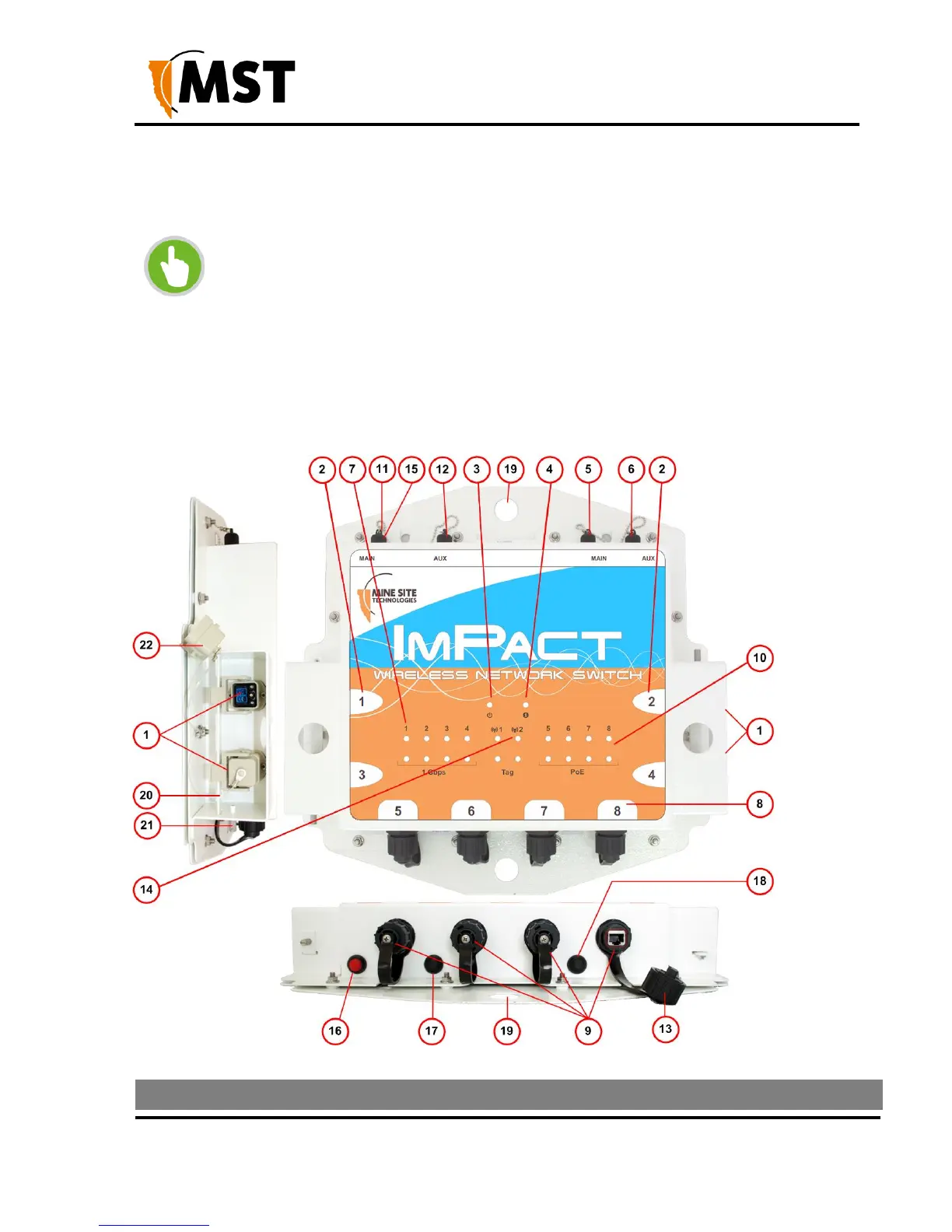

Figure 1: NS50 layout
