NS50 wireless network switch
User Manual
Revision C
Chapter 5: Configuration Using the Web Interface
© 2012 MST Global
Commercial in Confidence
78

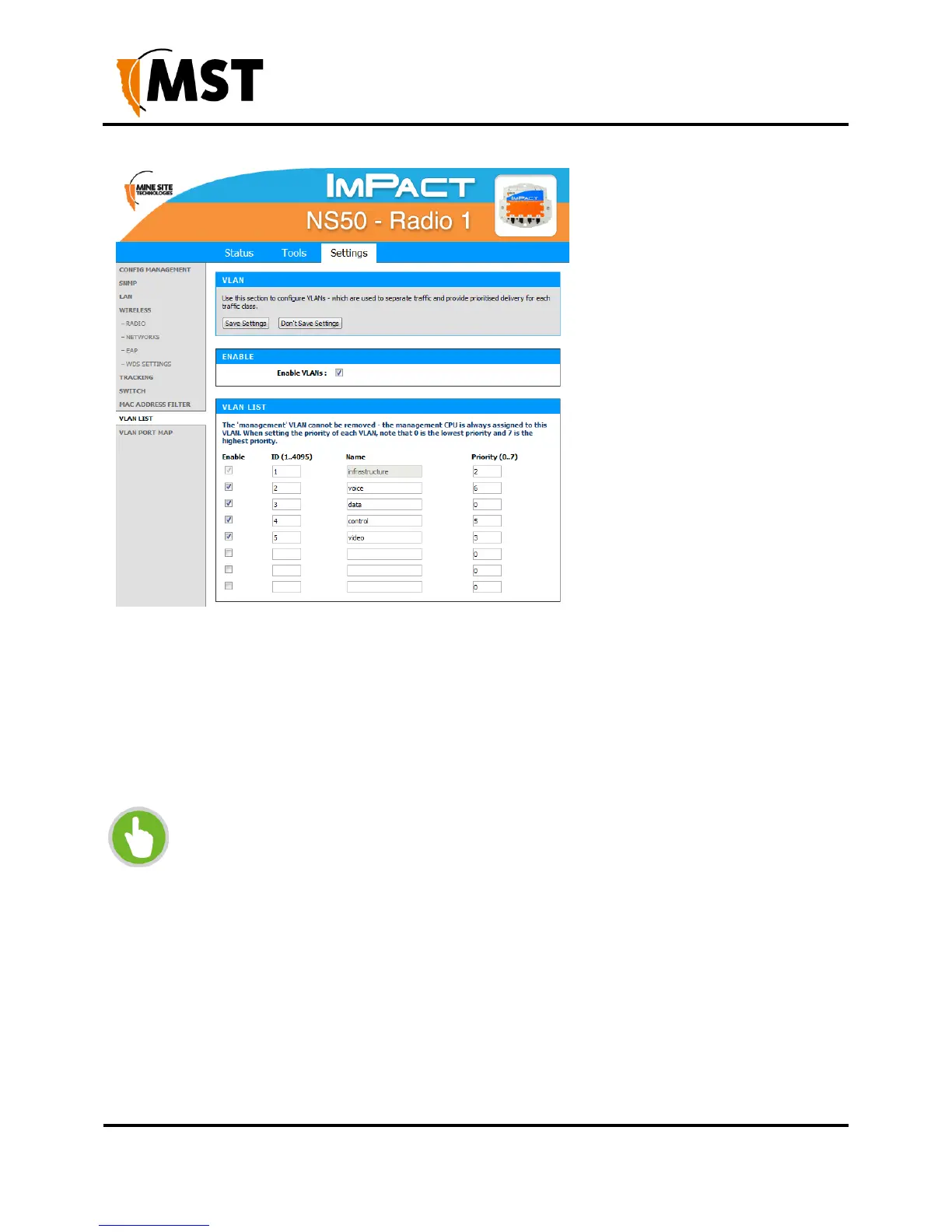

Figure 36: VLAN list configuration screen
Up to 8 VLANs can be defined with the following parameters:
Enable: Check box to enable the VLAN.
ID: VLAN ID number that is tagged in frames sent through trunk ports.
Name: VLAN name. It should be named to simplify administration.
Priority: Priority ranges from 0-7 (7 being the highest priority) that is assigned to frames on this
VLAN.
NOTE: The first VLAN (Infrastructure) cannot be disabled, because the
management CPU is always on this VLAN.
By default, VLANs are pre-defined with recommended IDs and priorities. This is based on commonly
used applications in mines. Once the VLANs are defined, they can be saved by clicking on the Save
Settings button.
After the VLANs have been defined, they can be assigned to the wireless networks and switch ports
(Network Switch only) on the VLAN PORT MAP screen.
