NS50 wireless network switch
User Manual
Revision C
Chapter 5: Configuration Using the Web Interface
© 2012 MST Global
Commercial in Confidence
81

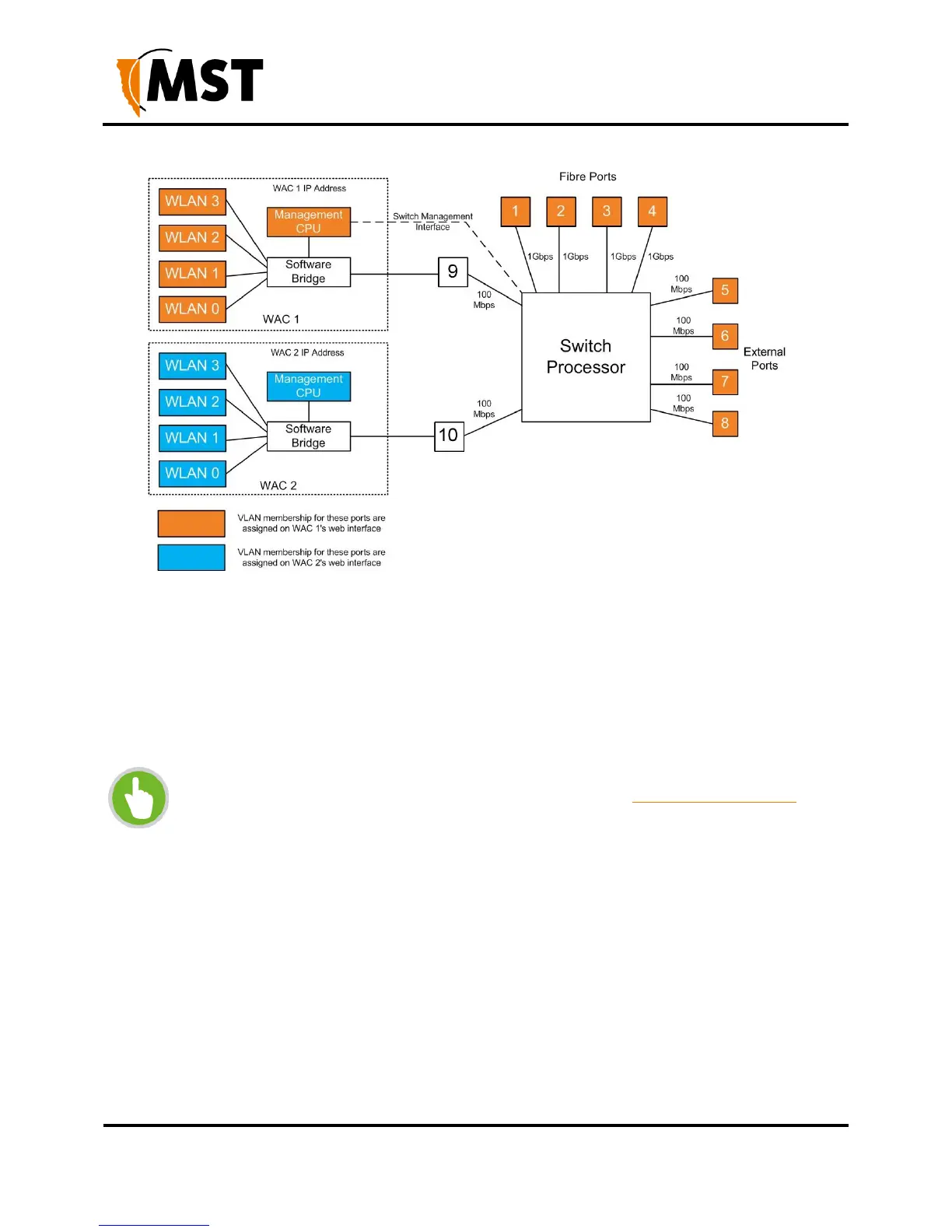

Figure 38: Logical block diagram of the Network Switch
To configure a port:
1. Set the Mode to be either Trunk or Access (for physical ports).
2. Select the VLAN Membership(s). For an Access port only one VLAN can be selected. For a
trunk port multiple VLANS can be selected.
3. Click Save Settings to save VLAN port map settings.
NOTE: To configure the VLAN port map properly, it is recommended to understand
the principles of VLANs. For more details on VLANs, see Understanding VLANs on
page 35.
