Installing the transport locking
device on driving end (KS), version
B

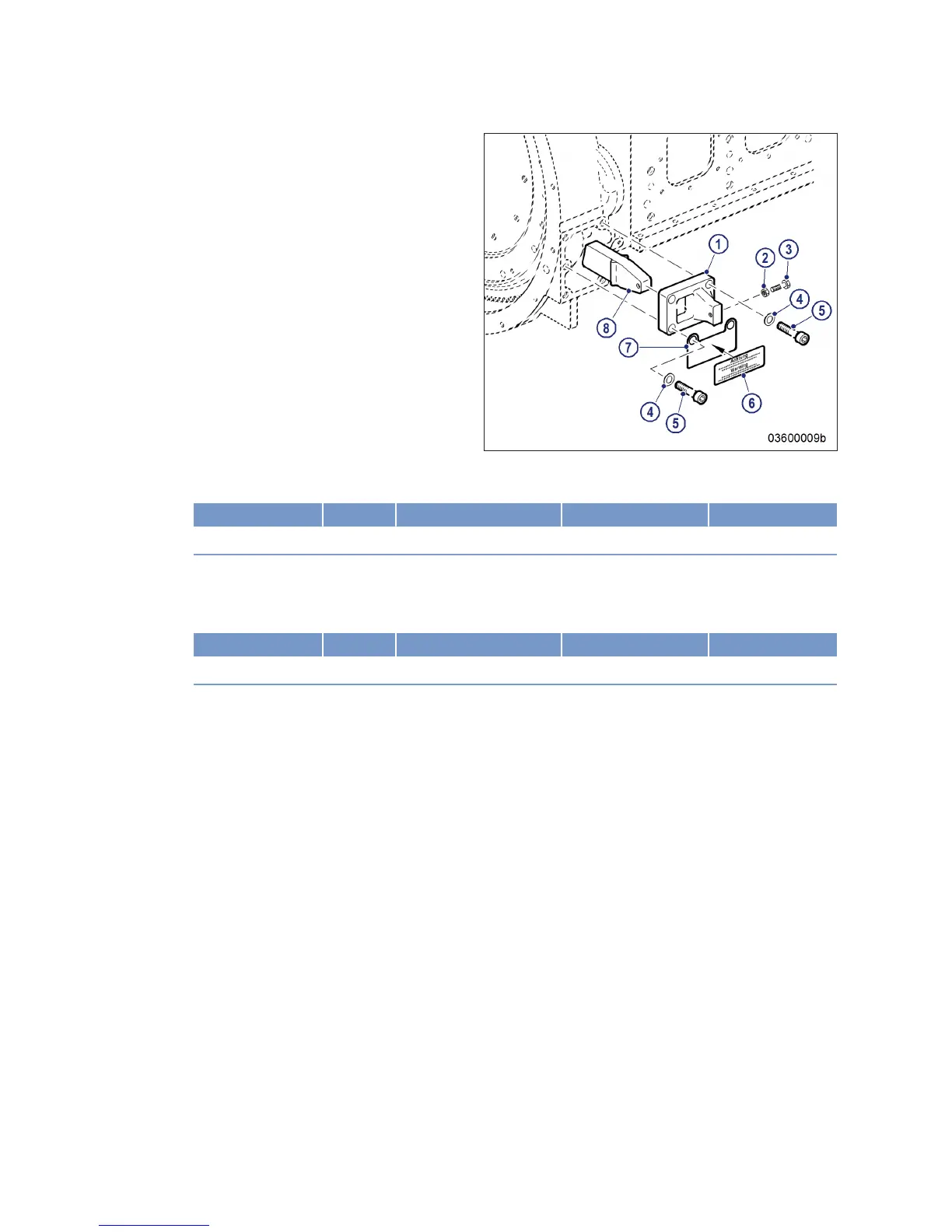

1. Secure plate (1) with screws (5) and washers (4) together with cover plate (7) at the bores on both sides
of the flywheel housing and tighten to the specified tightening torque.
Name Size Type Lubricant Value/Standard
Screw M16 Tightening torque (Engine oil) 250Nm +25Nm
2. Screw locknut (2) onto screws (3) up to the end of the thread.
3. Insert holder (8) through opening in plate (1) and secure with screw (3).
4. Tighten screws (3) alternately with torque wrench to the specified tightening torque.
Name Size Type Lubricant Value/Standard
Screw M10 Tightening torque (Engine oil) 30Nm +3Nm
5. Place locknuts (2) of screw (3) in position on both sides of plate (1) and lock.
6. Fit sign (6) to mark the engine as "Fitted with transport locking device".
