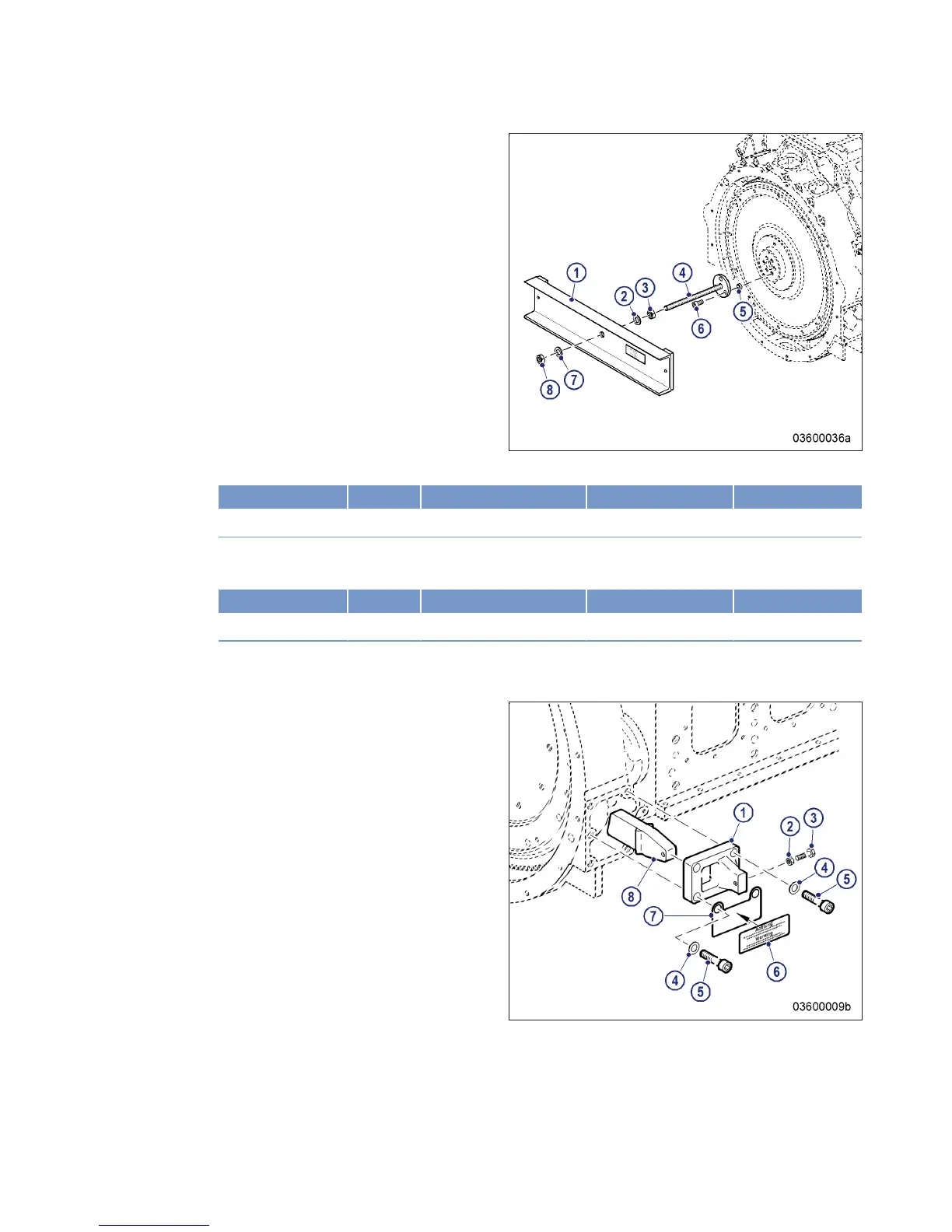

Installing the transport locking
device on driving end (KS), version
A
1. Screw holder (4) with spacer sleeves (5)
and screws (6) onto crankshaft. Spacer
sleeves (5), optional.
2. Tighten screws (6) with torque wrench to specified tightening torque.
Name Size Type Lubricant Value/Standard
Screw M16 Tightening torque (Engine oil) 160Nm +16Nm
3. Screw nut (3) with washer (2) onto holder (4). Screw on carrier (1) with washer (7) and nut (8) and tight‐
en nut (8) to the specified tightening torque using the torque wrench.
Name Size Type Lubricant Value/Standard
Nut M24 Tightening torque (Engine oil) 100Nm +10Nm
4. Secure with nut (3).
5. Mark the engine as "Fitted with transport locking device".
Removing the transport locking
device from driving end (KS),
version B
1. Release the locknuts (2) on both sides of
the flywheel housing, remove screw (3) and
take off holder (8).
2. Unscrew screws (5) and remove with wash‐
ers (4), cover plate (7) sign (6) and
plates (1).
3. Store the removed parts of the transport
locking device carefully for possible reuse
together with this documentation.
MS150049/02E 2012-11 | Safety | 9
TIM-ID: 0000040575 - 001
