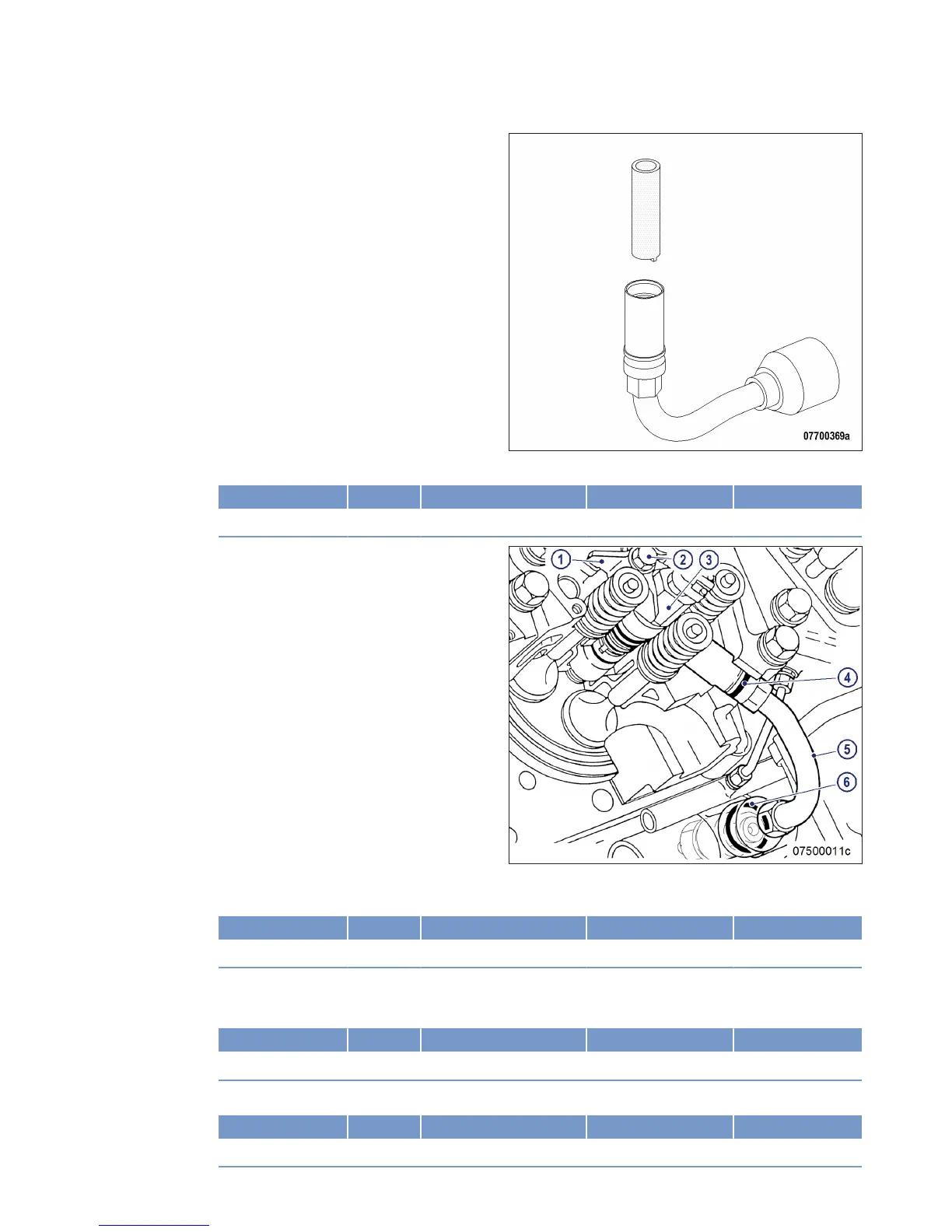

9. Use slotted screwdriver to check thrust ring
at both line ends for secure seating.
10. Tighten loose thrust ring to the specified tightening torque.
Name Size Type Lubricant Value/Standard
Thrust ring Tightening torque 5Nm to 10Nm
11. Coat screw head mating face (2) and
thread with engine oil.
12. Fit hold-down clamp (1) in correct position by hand. Tighten screw (2) with torque wrench to the specified
initial tightening torque.
Name Size Type Lubricant Value/Standard
Screw M12 Preload torque (Engine oil) 5Nm to 10Nm
13. Fit O-rings (4) and (6) on high-pressure fuel line (5) and coat with grease.
14. Tighten high-pressure fuel line (5) to the specified initial tightening torque.
Name Size Type Lubricant Value/Standard
HP line Preload torque (Engine oil) 5Nm to 10Nm
15. Tighten screw (2) to specified torque using a torque wrench.
Name Size Type Lubricant Value/Standard
Screw M12 Tightening torque 100Nm + 10Nm
MS150049/02E 2012-11 | Task Description | 95
TIM-ID: 0000000952 - 009
