16. Tighten union nut of adapter (limiting valve) with torque wrench to the specified tightening torque.
Name Size Type Lubricant Value/Standard
Union nut Tightening torque 140Nm + 10Nm
17. Tighten union nut of adapter (injector) with torque wrench to the specified tightening torque.
Name Size Type Lubricant Value/Standard
Union nut Tightening torque 120Nm +10Nm
18. Twist cable several times.

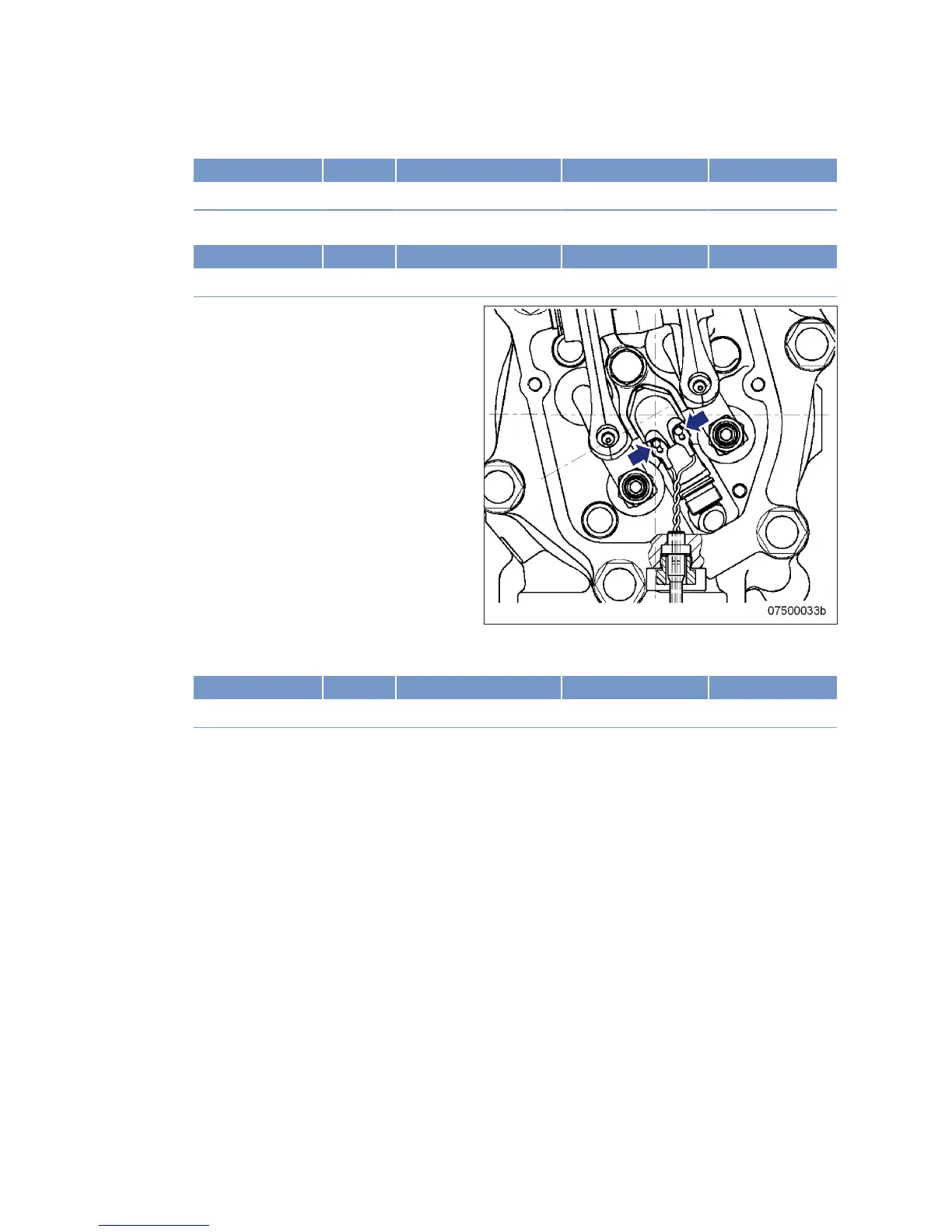

19. Insert cable lugs (arrows) underneath the screws on the injector and tighten screws with torque wrench
to the specified tightening torque.
Name Size Type Lubricant Value/Standard
Screw Tightening torque 1.5Nm
Final steps
1. Install cylinder head cover (→ Page 89).
2. Open up fuel supply to engine.
96 | Task Description | MS150049/02E 2012-11
