3. Remove cut-out oil filter using the oil filter
wrench.
4. Clean the sealing face on the adapter.
5. Check sealing ring of new oil filter and coat it
with oil.
6. Fit SOLAS shield (→ Page 21).

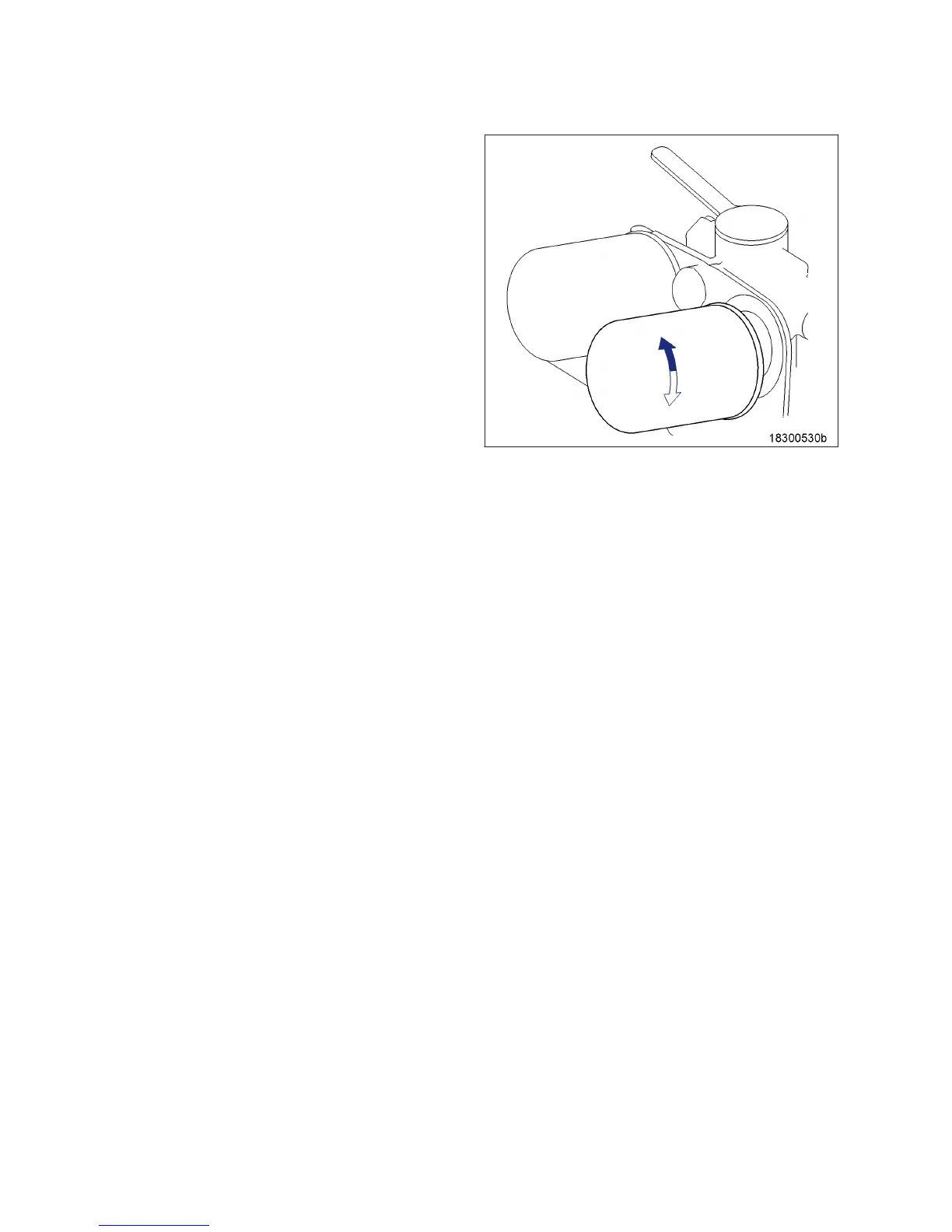

7. Screw on and tighten new engine oil filter by
hand.
8. Replace further oil filters in the same way.
9. Switch filter to normal position.
10. After each oil change and filter replacement,
crank engine on starting system (→ Page 65).
11. Check oil level (→ Page 116).
Changing oil filter with engine running
1. Reduce engine speed to <1100 rpm.
2. Remove cut-out oil filter using the oil filter wrench.
3. Clean the sealing face on the adapter.
4. Check sealing ring of new oil filter and coat it with oil.
5. Fit SOLAS shield (→ Page 21).
6. Screw on and tighten new engine oil filter by hand.
7. Replace further oil filters in the same way.
8. Switch filter to normal position.
9. Check oil level (→ Page 116).
120 | Task Description | MW15409/04E 2015-08
TIM-ID: 0000036392 - 002
