MTU 16V2000M91 - Engine Mounting; Support

8.21 Engine Mounting / Support
8.21.1 Engine mounting – Checking condition of resilient mounts
Preconditions
☑ Engine is stopped and starting disabled.
☑ Engine is filled with engine coolant and engine oil.
☑ Engine is under static load.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Vernier caliper, 300 mm
Y20000275 1
Engine mounting – Checking
condition of resilient mounts

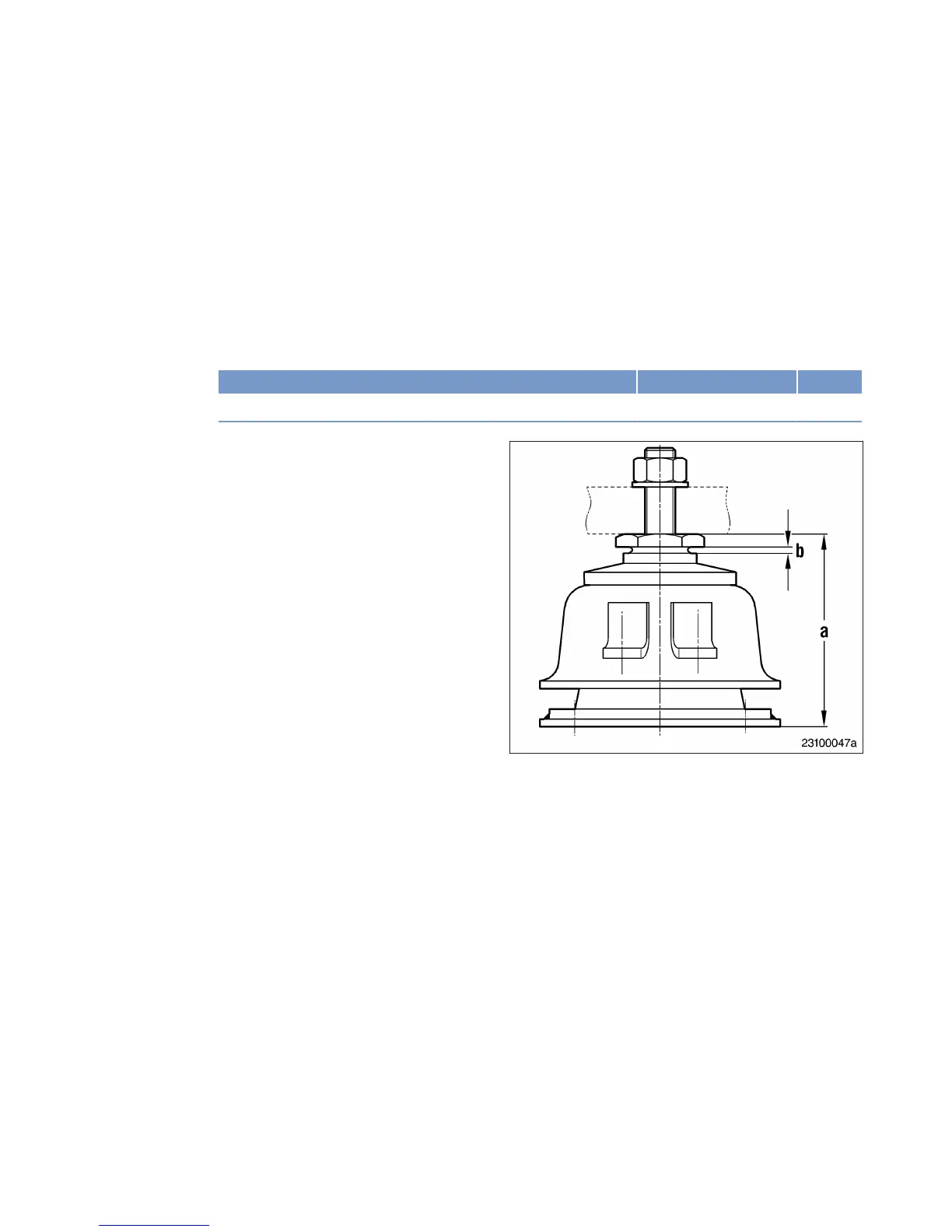

1. Measure height setting (b) with feeler gauge.
2. Measure dimension (a) with calipers.
3. Calculate permissible value of dimension (a),
considering the measured value of height ad-
justment (b):
• Reference values: The permissible value of
dimension (a) is 144 mm when (b) =
5 mm.
• When measured height setting (b) = 6 mm,
the permissible value of (a) is 145 mm.
• When measured height setting (b) = 4 mm,
the permissible value of (a) is 143 mm.
4. Replace the resilient mount, if the measured
value of dimension (a) is lower than the per-
missible value.
MW15409/04E 2015-08 | Task Description | 141
TIM-ID: 0000007554 - 004
