8.24.5 Engine Monitoring Unit – Plug connection check
Preconditions
☑ Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Connector pliers
F30017884 1
Checking plug connections on
Engine Monitoring Unit

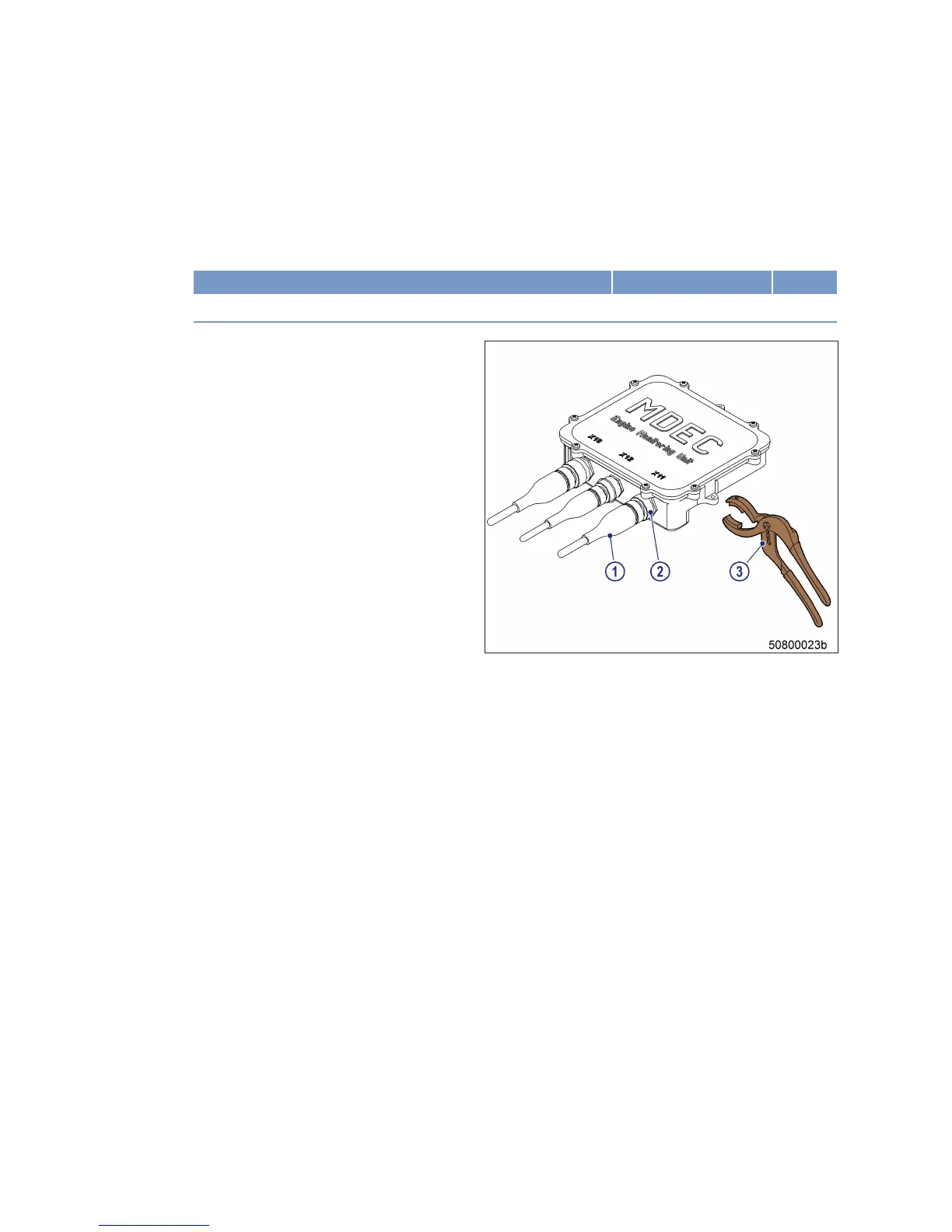

1. Use connector pliers (3) to make certain that
all Engine Monitoring Unit plug connections
are securely seated.
2. Tighten loose bayonet union nuts (2) with
connector pliers (3) by turning them clock-
wise until they latch into place.
3. Make sure that unassigned sockets are
closed off with cover caps.
4. Contact Service if bayonet union nuts are de-
fective.
