8.20 Battery-Charging Generator
8.20.1 Battery-charging generator drive – Drive belt check and adjustment
Preconditions
☑ Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Assembly device
F6559691 1

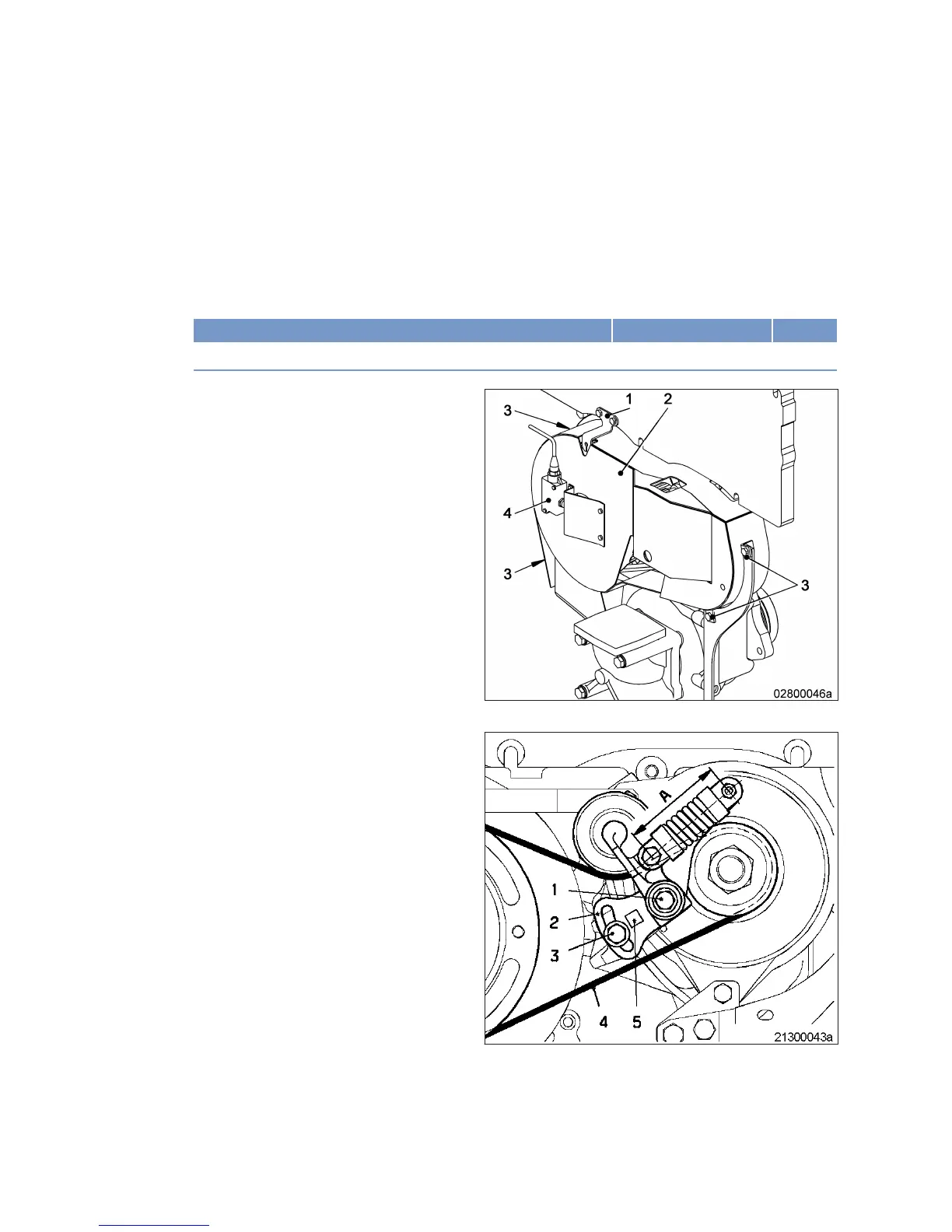

Preparatory steps
1. Remove limit switch (4).
2. Remove indicator (1).
3. Remove screws (3) of protective cover (2).
4. Remove protective cover.
5. Check drive belt condition (→ Page 137).
Belt drive – Checking distance
1. Measure distance (A) with assembly device.
2. If measured value of distance (A) is not within
the tolerance of 98 mm ± 1.5 mm, readjust
belt tension.
138 | Task Description | MW15409/04E 2015-08
TIM-ID: 0000007388 - 004
