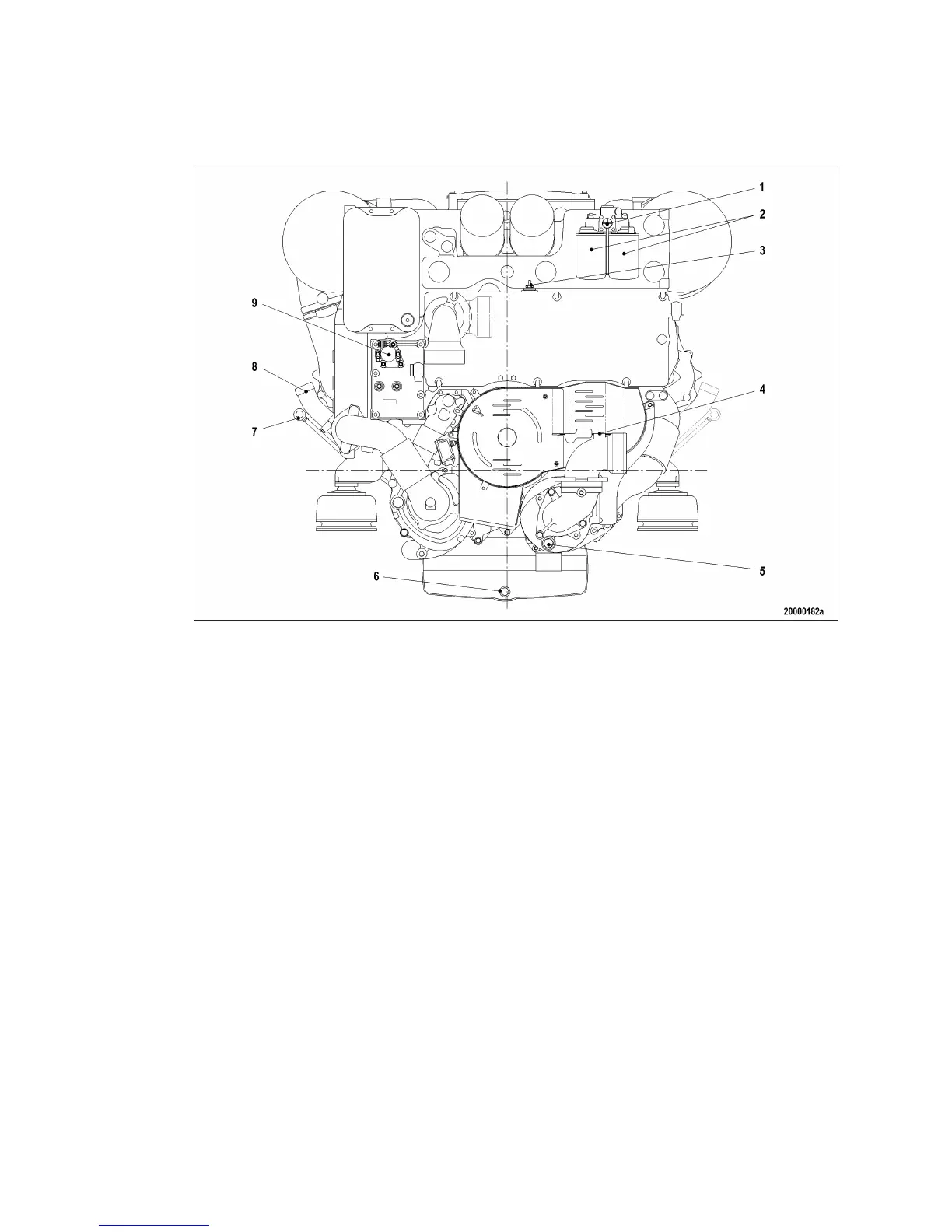

Free end (KGS)
1 Three-way cock
2 Fuel filter
3 Fuel vent valve
4 Raw water pump filling plug
5 Raw water pump drain plug
6 Connection for oil extrac-
tion
7 Oil dipstick (connection left
or right engine side option-
al)
8 Oil filler neck (connection
left or right engine side op-
tional)
9 Fuel priming pump
126 | Task Description | MW15409/04E 2015-08
TIM-ID: 0000006697 - 003
