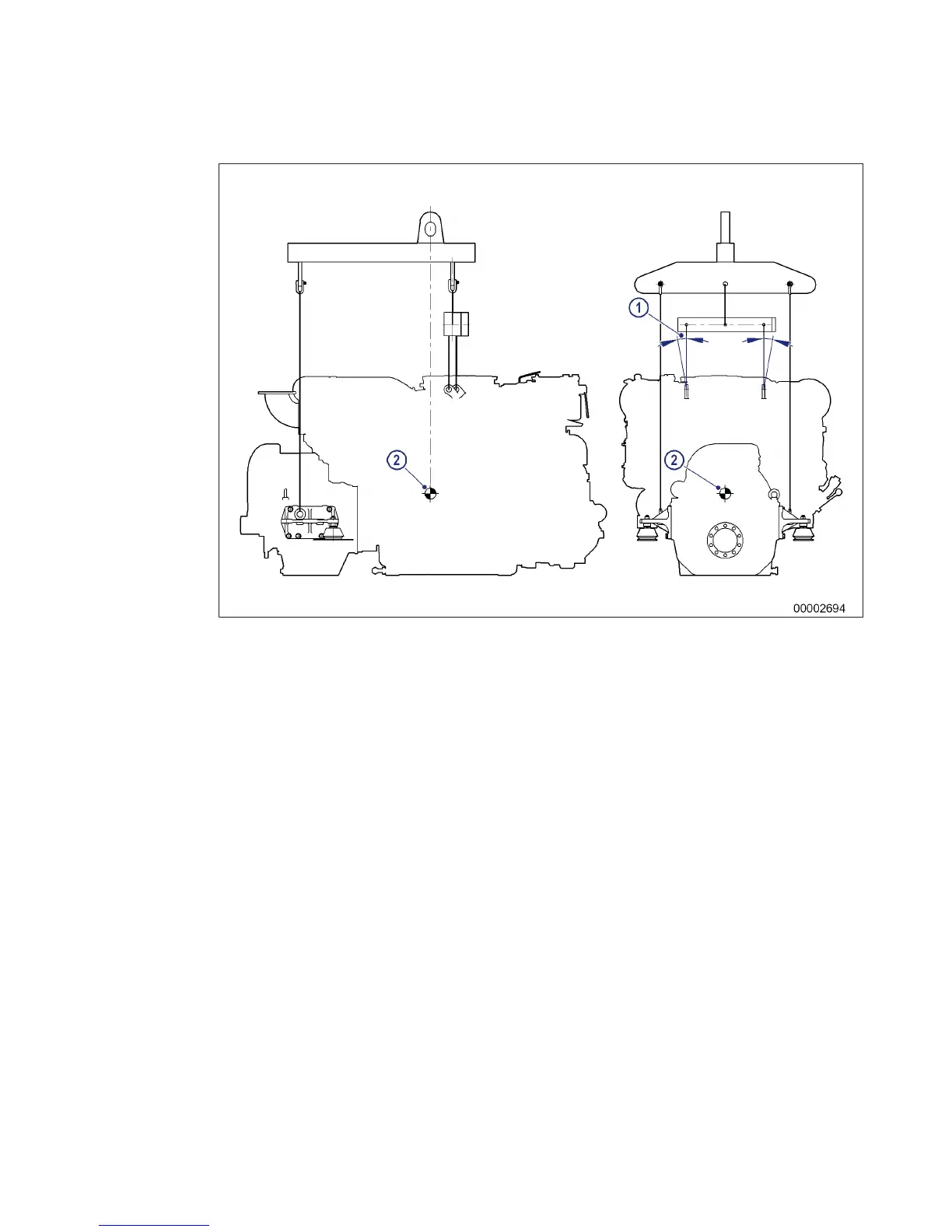

Transportation with flange-mounted gearbox – 12V/16V
1 Max. admissible diagonal
pull 10°
2 Center of gravity
Note engine center of gravity
Refer to the installation/arrangement drawings for details of engine center of gravity.
MW15409/04E 2015-08 | Transport | 19
TIM-ID: 0000064511 - 001
