Shielding of fuel filters and lube-oil filters

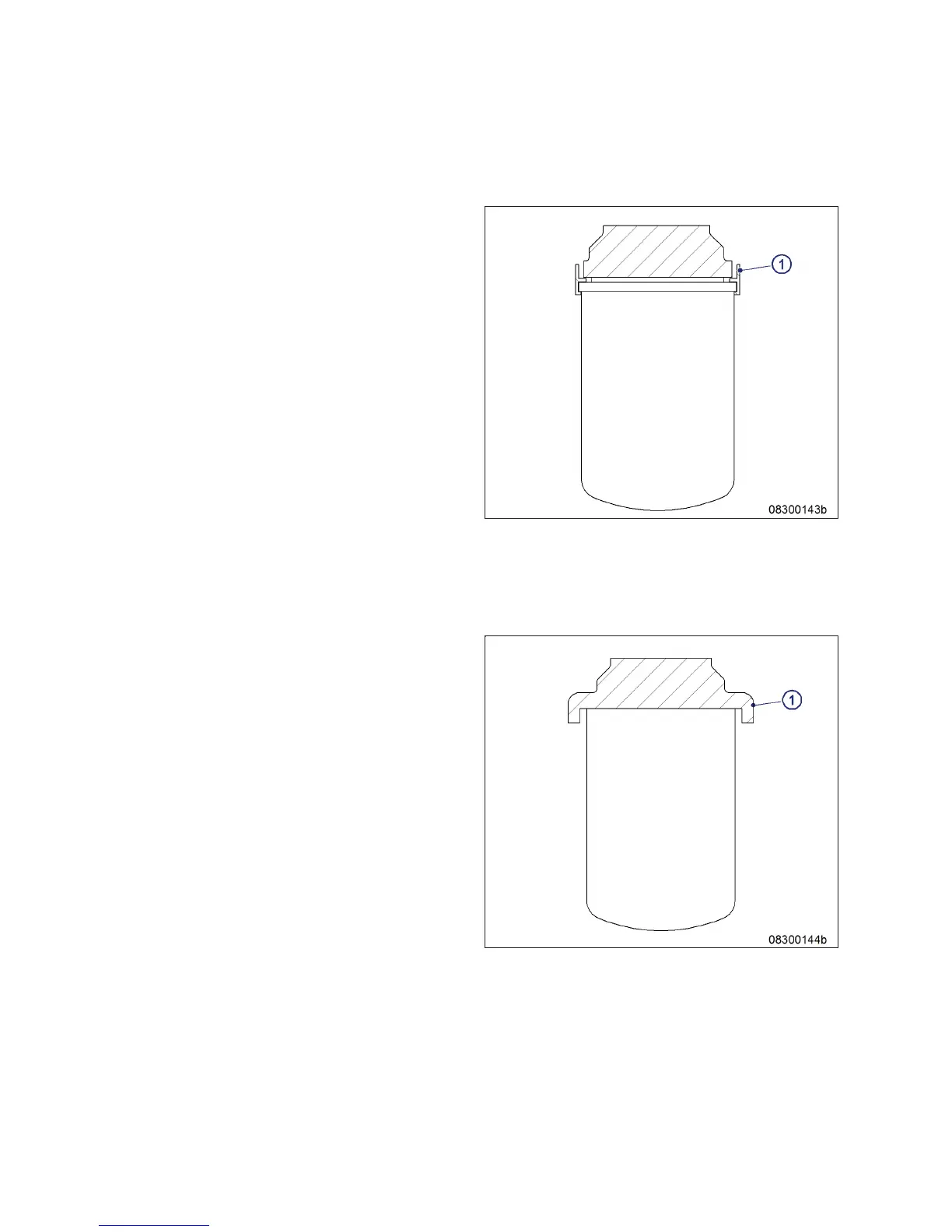

Shielding with plastic ring
The plastic ring (1) precludes lateral spray.
The fluid is diverted to the catch basin whereby the pressure is greatly reduced.
Shielding by overlapping design
The overlap (1) precludes lateral spray.
The fluid is diverted to the catch basin whereby the pressure is greatly reduced.
28 | General Information |
MW15409/04E 2015-08
TIM-ID: 0000002178 - 006
