4.1. Status page
Status page is a default page of the Video Grabber’s web interface. It provides information current
operational parameters of the Video Grabber device. This page can be divided into 4 main sections:
1. Device information
2. Device status
3. NTP status
4. Analog resolution table
Device
information
Device
status
NTP
status
Analog
resolution table

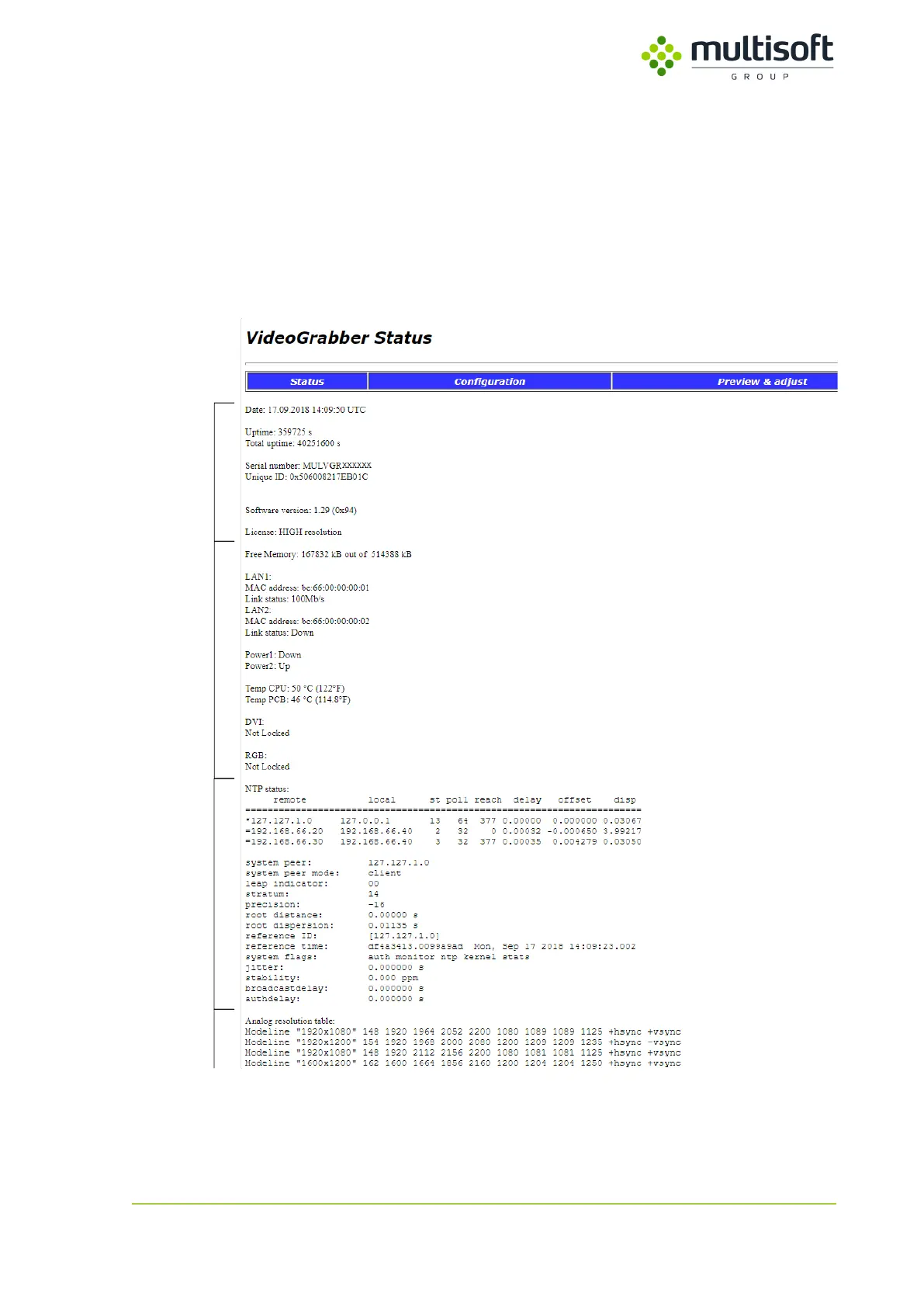

Figure 9: Video Grabber Status page.
