2. Device overview
2.1. Front panel

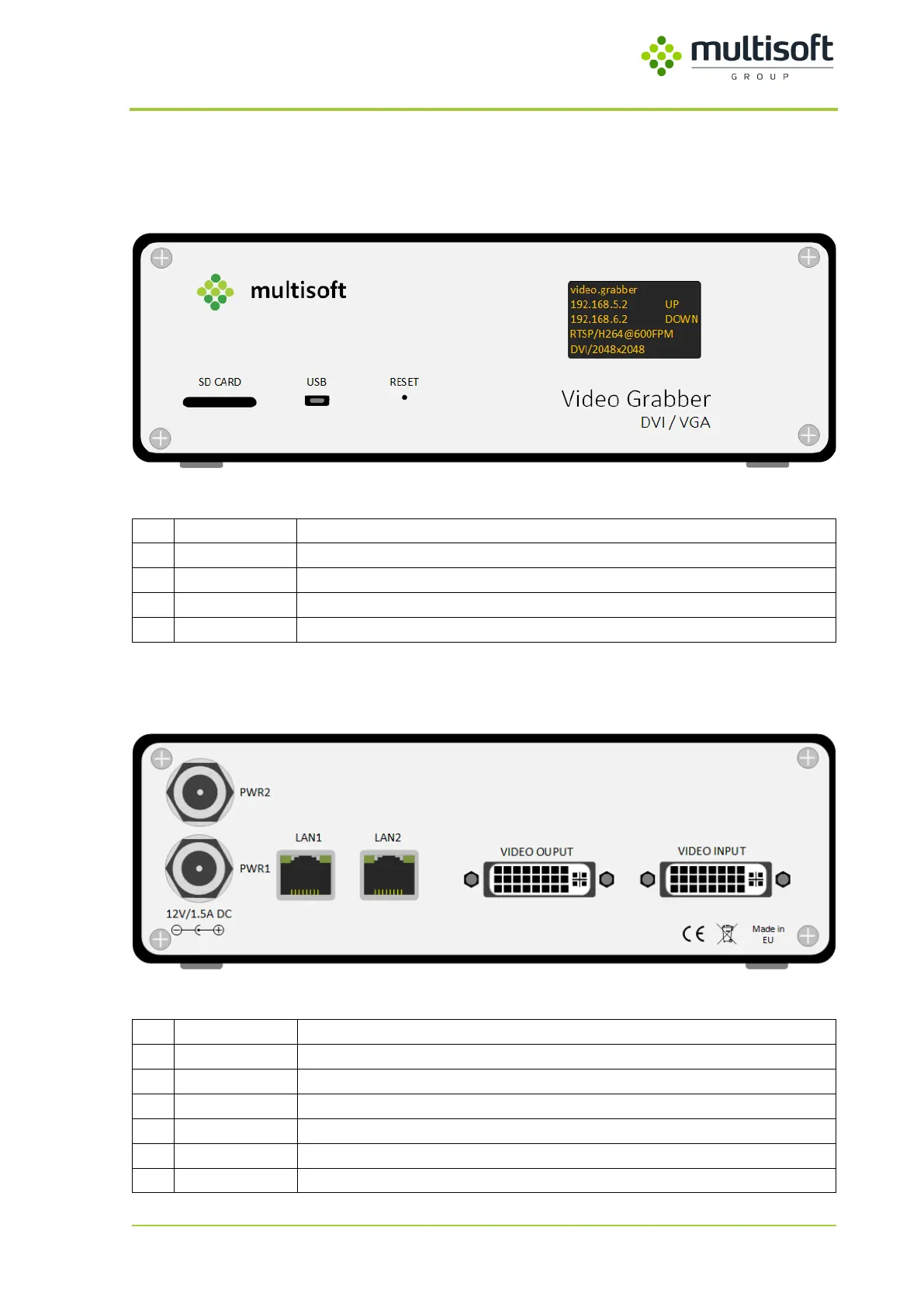

Figure 1: Front panel of the Video Grabber
No.
Name
Description
1
SD Card
Used for firmware update and factory reset
2
USB
Used for firmware update and diagnostics
3
Reset
Used for resetting the device
4
OLED screen
Displays Video Grabber’s runtime information
2.2. Back panel
Figure 2: Back panel of the Video Grabber
No.
Name
Description
1
PWR1
Primary power connector
2
PWR2
Secondary power connector
3
LAN1
Frist network interface
4
LAN2
Second network interface
5
VIDEO OUTPUT
DVI-I, output signal
6
VIDEO INPUT
DVI-I, input signal
