Video Grabber User Manual - v. 1.19 (FW 1.29)
Example 6
Video Grabber captures the video signal at a rate of 600 frames per minute (10FPS) and then provides
a LOSSLESS stream with bandwidth limit and output limit of 1000kbps.

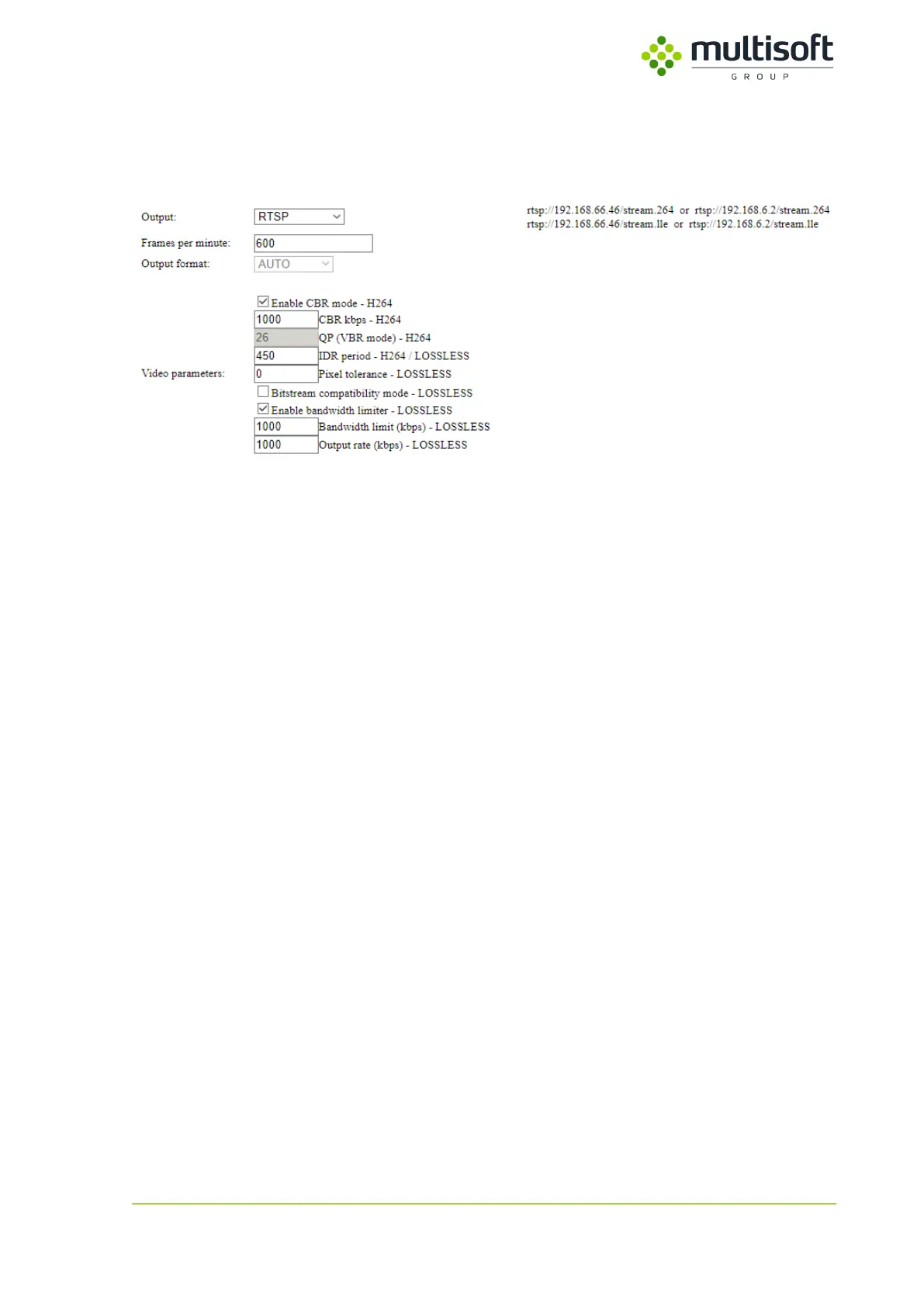

Figure 24: Sample configuration of Video Grabber set to stream captured video signal (LOSSLESS)
To connect to the configured LOSSLESS stream user would have to use one of the RTSP connection
strings. In the sample shown above it would be either:
rtsp://192.168.66.46/stream.lle
or
rtsp://192.168.6.2/stream.lle
Video parameters that refer to H.264 (Enable CBR mode, CBR kbps, QP) are not used when user
connects to LOSSLESS stream.
