Section 50 00-02-0329
01-09-07 - 8 -
TTD G-Lead Choke Installation Instruction
IMPORTANT: This installation is recommended for when connecting an ignition
primary lead to the TTD annunciator to avoid potential electrical noise problems.
This choke has been specifically selected for the application.
The choke (Murphy part number 50000774) is shipped with each TTD
annunciator.

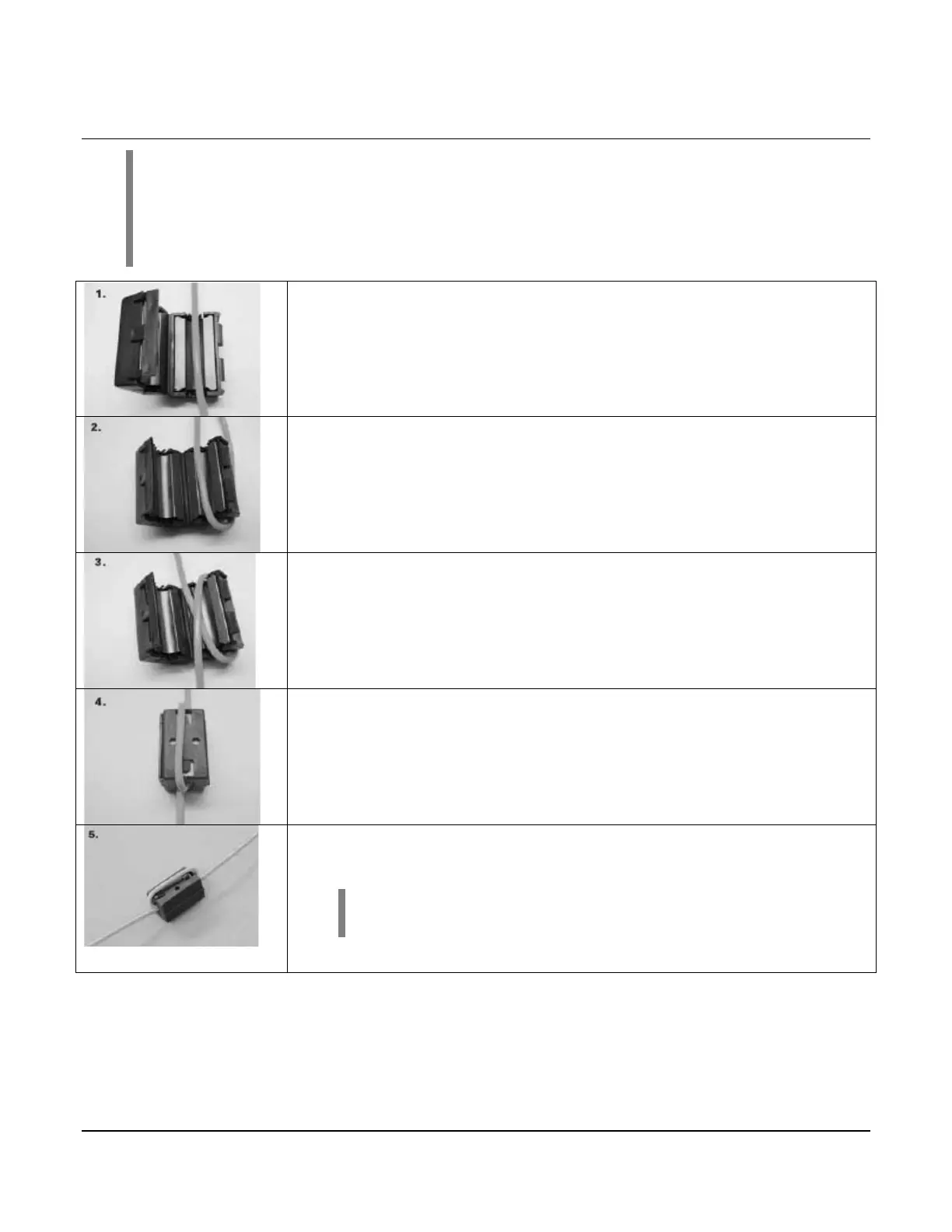

1. Open the choke and lay it on the table.
2. Lay the wire across the inside of the choke as shown.
3. Wrap the wire around the outside of the choke as shown.
4. Wrap the wire back across the inside of the choke as shown.
The wire should lie next to the wire from step 2.
5. While holding the wires, carefully close the choke as shown.
Be careful not to pinch the wire when closing the choke.
NOTE: Keep the wire loops on the outside of the
choke as small as possible.
