Section 50 00-02-0329

01-09-07 - 37 -

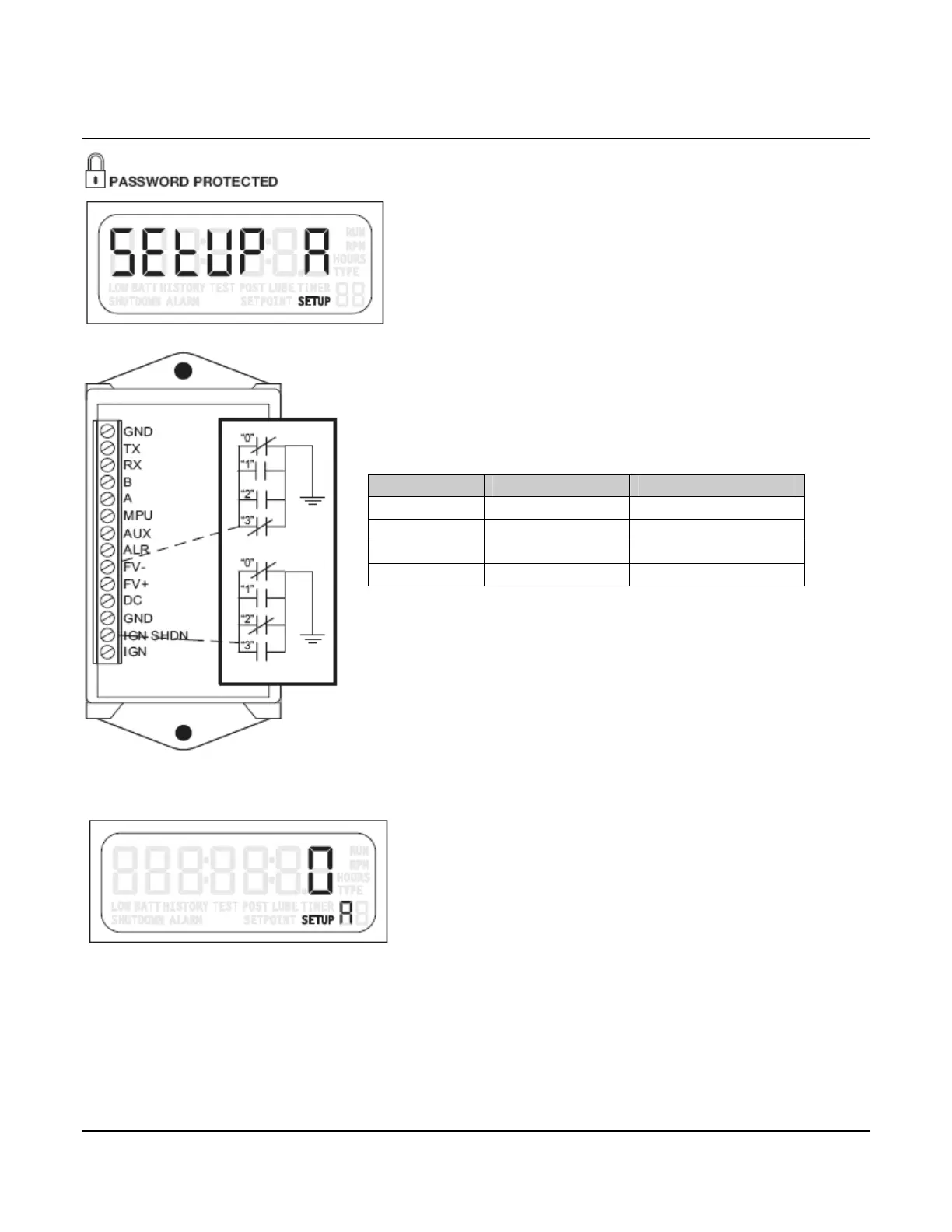

Setup A – Output Mode

Upon Shutdown, the FV- (Fuel Valve minus) and the

IGN SHDN (Ignition Shutdown) terminals change state

and either conduct-to-ground or open-to-ground. The

change of state depends on the configuration of SETUP

There are four choices, terminals are shown in shutdown

state:

Setting FV - IGN SHDN

0 Closed Closed

1 Open Open

2 Open Closed

3 Closed Open

Table Note: Closed indicates a closed to ground state and

open indicates an open to ground state when the TTD unit is

in Shutdown Mode.

Use the [UP ARROW] or [DOWN ARROW] key to

select the Output Mode setting. Press [ENTER] to save

the setting.
