Section 50 00-02-0329
01-09-07 - 12 -
The Display

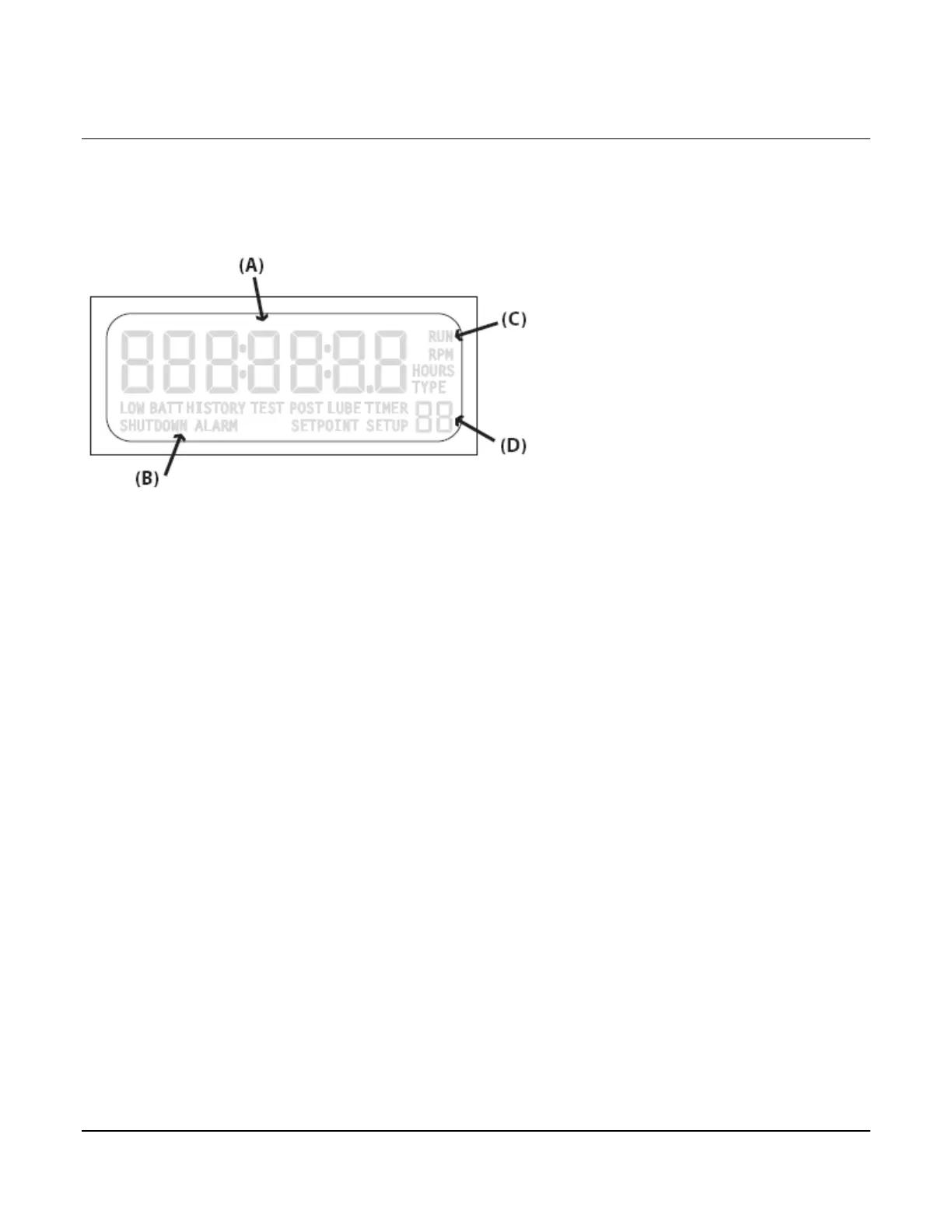

The TTD annunciator features a static LCD display (A) with backlight (external DC is required).
The operating temperature is between -40° to 85°C. The applicable icon and number (B, C and
D) will be displayed to clarify the display readings or alert the operator to an operating
condition.
Display Icons
• RUN – run mode
• RPM – screen value
• HOURS – screen value
• TYPE – channel type configuration
• LOW BATT – low battery warning (displayed if the condition exists)
• HISTORY – alarm or shutdown history
• TEST – test mode
• LUBE – pre-lubrication timer
• POSTLUBE – post-lubrication timer
• SHUTDOWN – stop mode
• ALARM – alarm(s) warning (displayed if the condition exists)
• SETPOINT – edit set-point value
• SETUP – setup menu(s)
