Front Panel Key Functionality
The operator can interface with the TTD Annunciator in one of two ways. One is via the Front
Panel keypad. The second way an operator can interface is with the Murphy MConfig
software. This provides the user with a Template displaying the TTD Annunciator setup and
status by reading the Modbus registers. Setup selections can be made and the configuration
saved to file for future reference. The software is free and can be downloaded from
www.fwmurphy.com

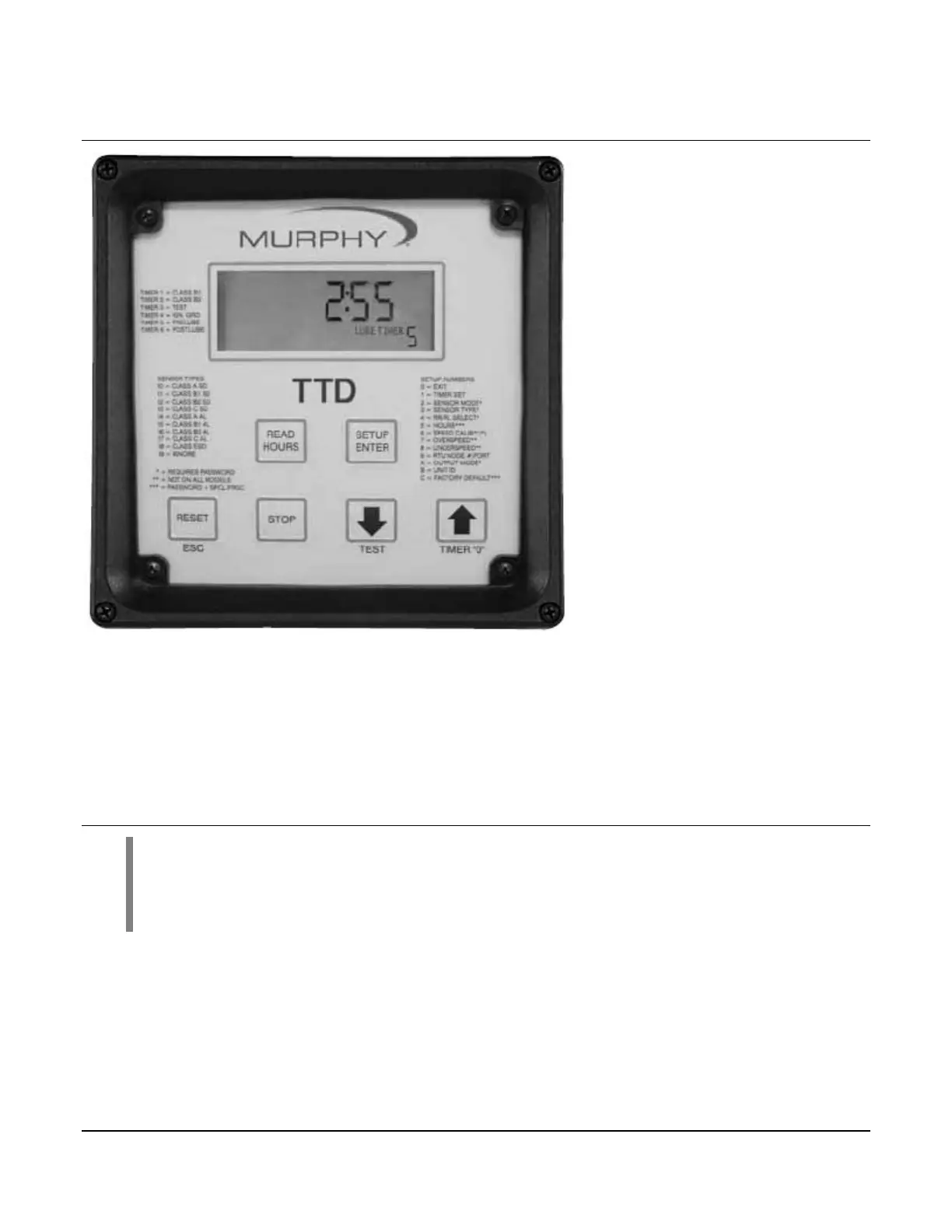

TTD Keypad Features
NOTE: Because the keys have more than one function depending on the
operational mode the system is in at the time, the following TTD Keypad
Functionality blocks indicate the keypad action seen if that key is pressed.
The LOW BATT icon can show in any mode if the battery charge is low.
