Start-up
User manual 55530_hdb_en_16 54 / 156
Hardware catalog Scan the GSDML file of the MVK-MPNIO module into the hardware cat-
alog of the hardware configuration program.
When using TIA this module can then be found in the hardware catalog in the
directory structure:
Other field devices | PROFINET IO | I/O | Murrelektronik | MVK-MPNIO |
V5.0
If the engineering software supports the folder structure, the module is dis-
played in a similar way to that shown in Fig. “Hardware catalog”.

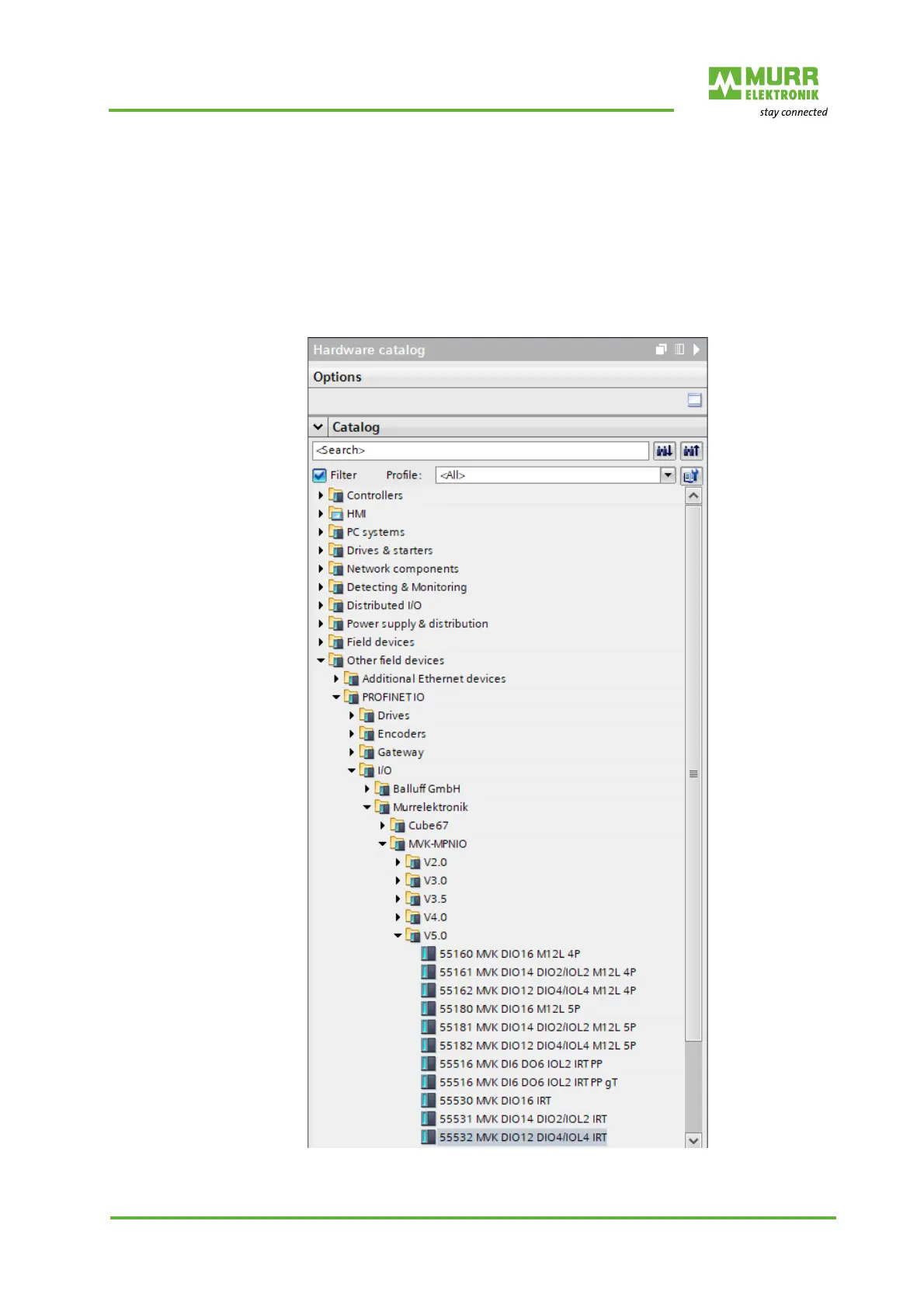

Fig. 7-1: Hardware catalog
