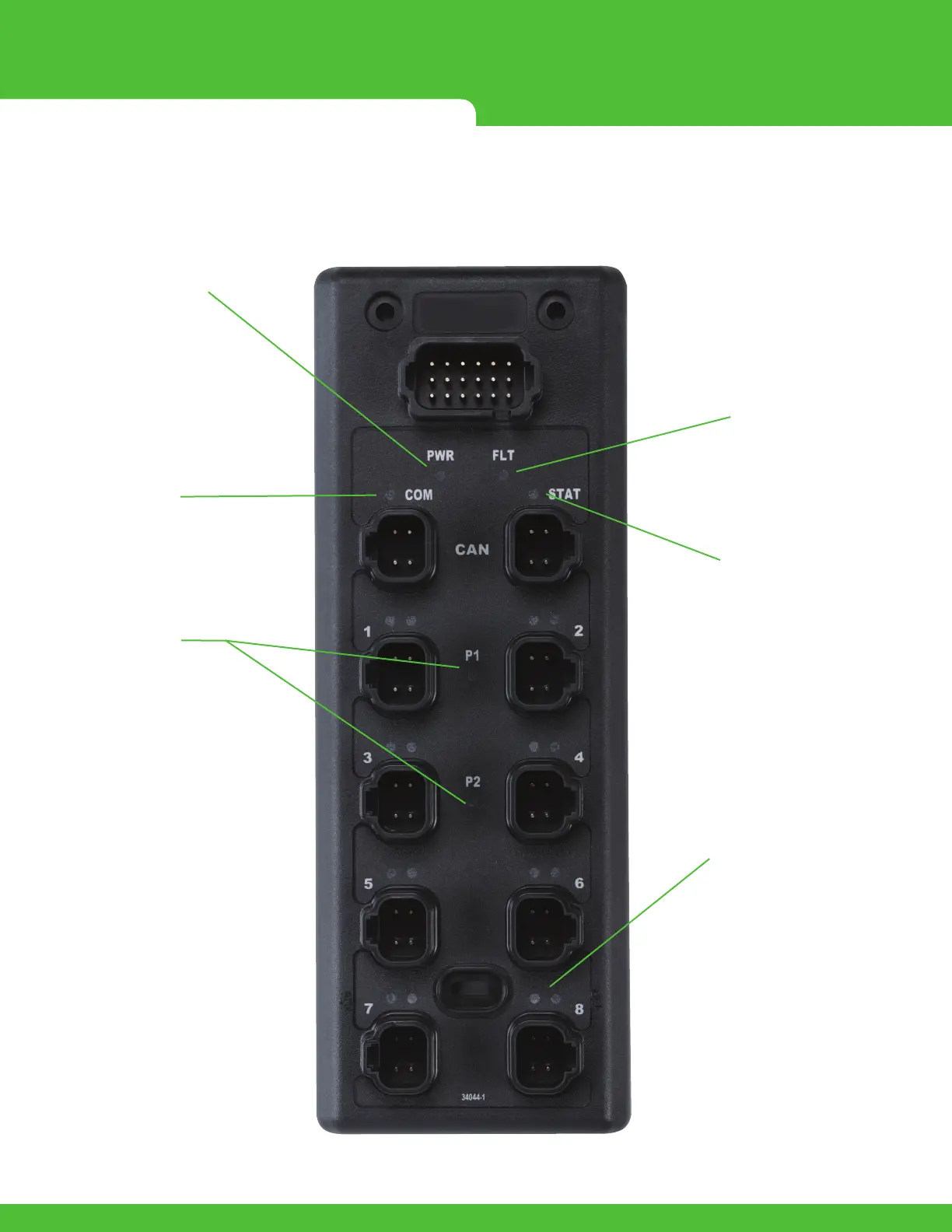

4.4 LEDs
PWR LED - Blue
Indicates module power
is connected
COM LED - Green
Communication Status
Buss Power - Blue
P1=Powerforports1&2
P2=Powerforports3&4
FLT LED - Red
FaultStatus
STAT LED - Green
ModuleStatus
PORT I/O LED - Yellow
LeftLED=SignalA
RightLED=SignalB
Status
1.SteadyOn=
Output/Inputison
2.FlashingOn(OutputPort)=
Outputhasafault
3.FlashingOn(InputPort)=
Input is pulsing
DuringstartuptheLEDswillcomeonfor3-5secondstoverifythattheyareworking(bulbtest).
