5.3.2 INPUT LAYOUT
Power
Pin1=8-32VDC
Pin3=Ground(A)
Congurations
Input A
1.DigitalPositive
2. Digital Ground
3.Frequency/Counter/Encoder(7A&8A)
Input B
1.DigitalPositive
2. Digital Ground
3.4-20mA
4.0-5VDC
5.0-10VDC
6.0-32VDC
7.Ratiometric
Inputs
•Port5,Pin4:Input5A
•Port5,Pin2:Input5B
•Port6,Pin4:Input6A
•Port6,Pin2:Input6B
•Port7,Pin4:Input7A
•Port7,Pin2:Input7B
•Port8,Pin4:Input8A
•Port8,Pin2:Input8B

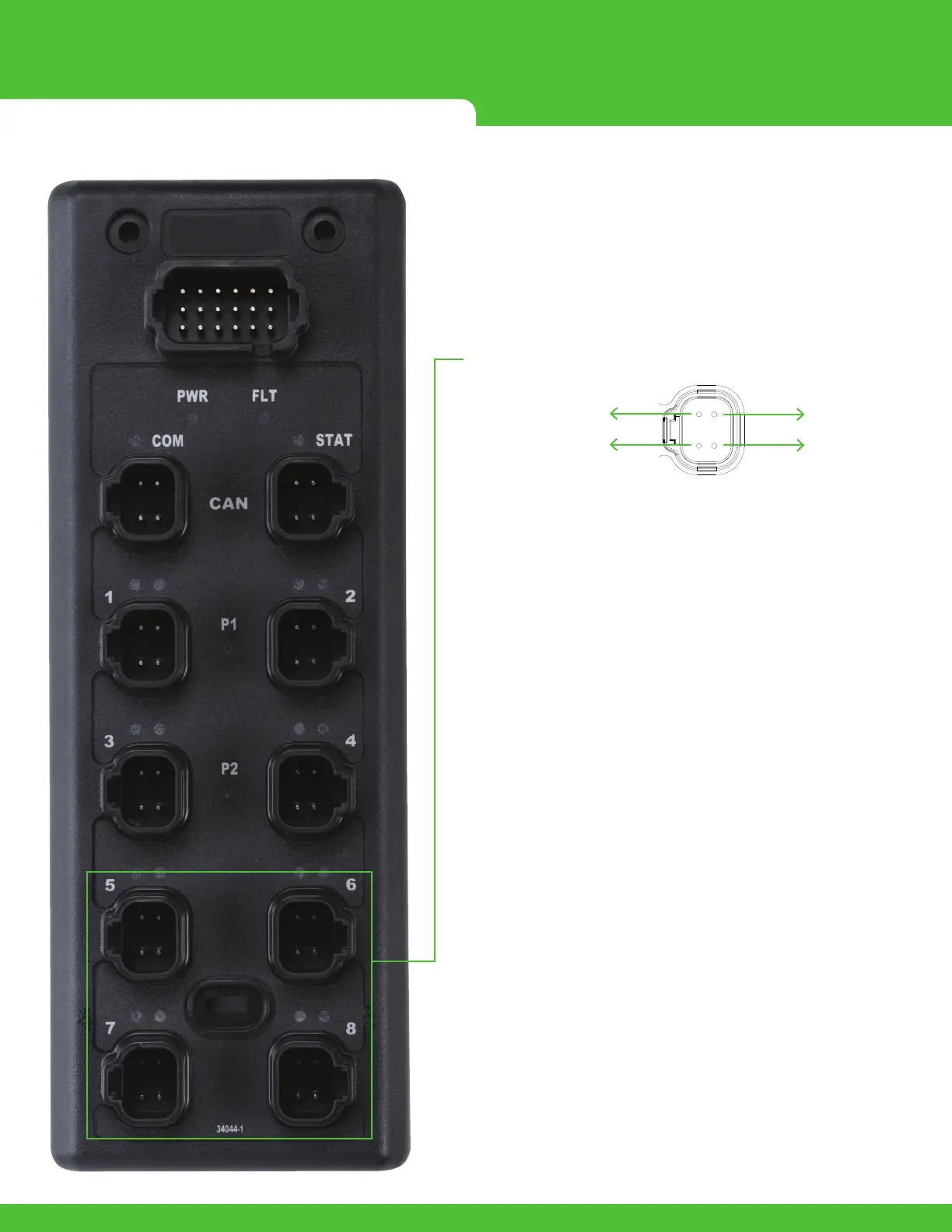

Inputs (Ports 5-8)
CAN
1 2
43
65
7 8
1 2
4 3
Ground(A)
Input B
Input A
8-32VDCPower
