A Murrelektronik Company
A Murrelektronik Company
17

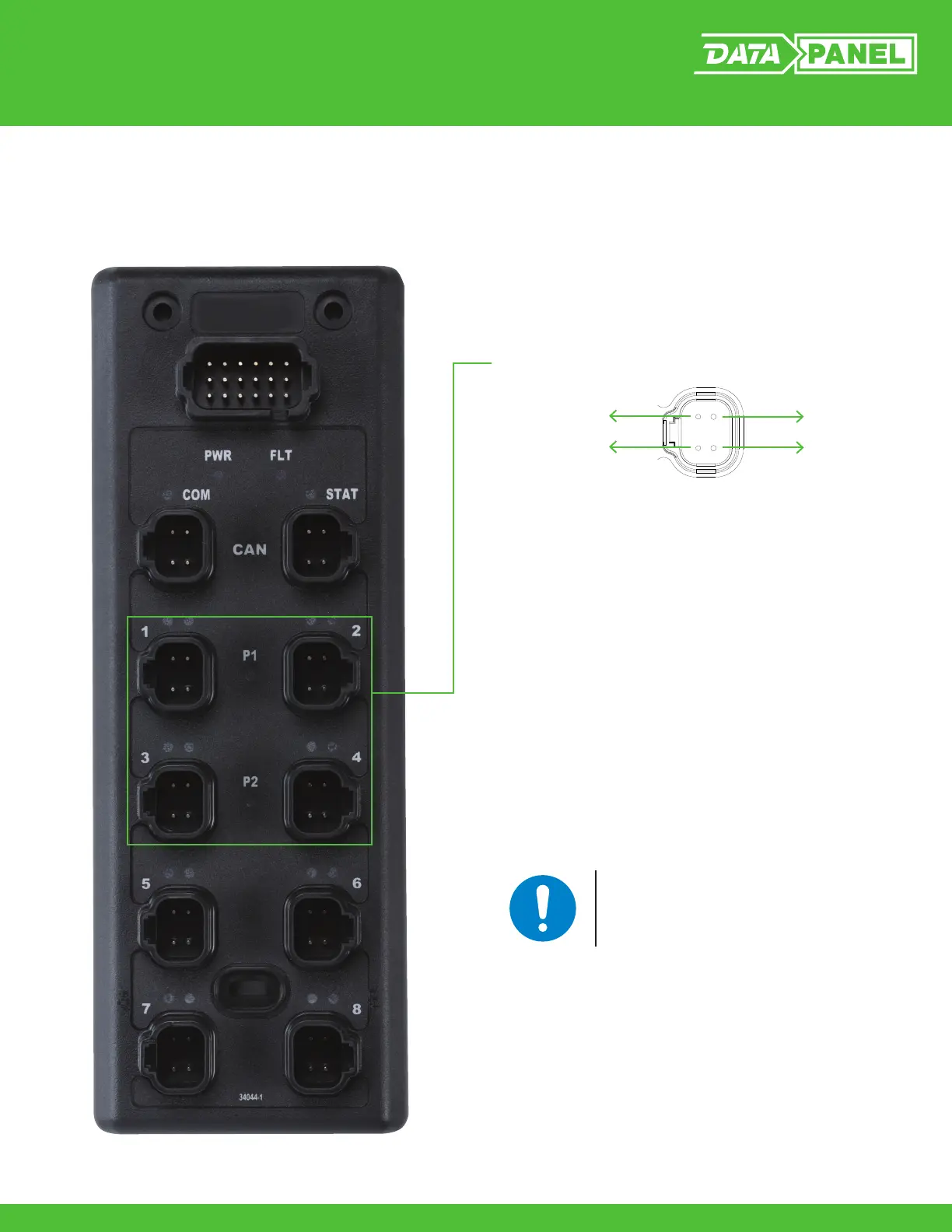

5.2.2 OUTPUT LAYOUT
Power
Pin1=Ground(B)
Pin3=Ground(B)
Congurations
1.Digitalhighside
2.PWM
3.PWM(i)CurrentControlled
Amperage
Alloutputs=4A
Outputs
•Port1,Pin4:Output1A
•Port1,Pin2:Output1B
•Port2,Pin4:Output2A
•Port2,Pin2:Output2B
•Port3,Pin4:Output3A
•Port3,Pin2:Output3B
•Port4,Pin4:Output4A
•Port4,Pin2:Output4B
Outputs (Ports 1-4)
CAN
1 2
43
65
7 8
1 2
4 3
Ground(B)
OutputB(4A)
OutputA(4A)
Ground(B)
Each Load must use the return Ground (B)
pin. “Chassis Grounding” is not supported.
