MUTOH ValueCut Series - 2.2 Stand & Flexible Media Support System

ValueCut User Manual
Installation 2-2
2.2 Stand & Flexible Media Support System (for VC-1300/1800)
Step 1
Please examine supplied items in the accessory box of stand carton:
 2 piece of T-shape stand
 1 piece of stand beam
 18 pieces of M6 screws
 1 piece of M5 L-shape hexagon screw driver
 1 piece of Installation Guide for Stand Set
Step 2
 Remove the plotter body and the accessories from the shipped carton.
 Place the stand beam upright on the T-stand and follow the number  to
assemble.
(See Figure 2-1 & 2-2)

T-Stand


 Stand beam

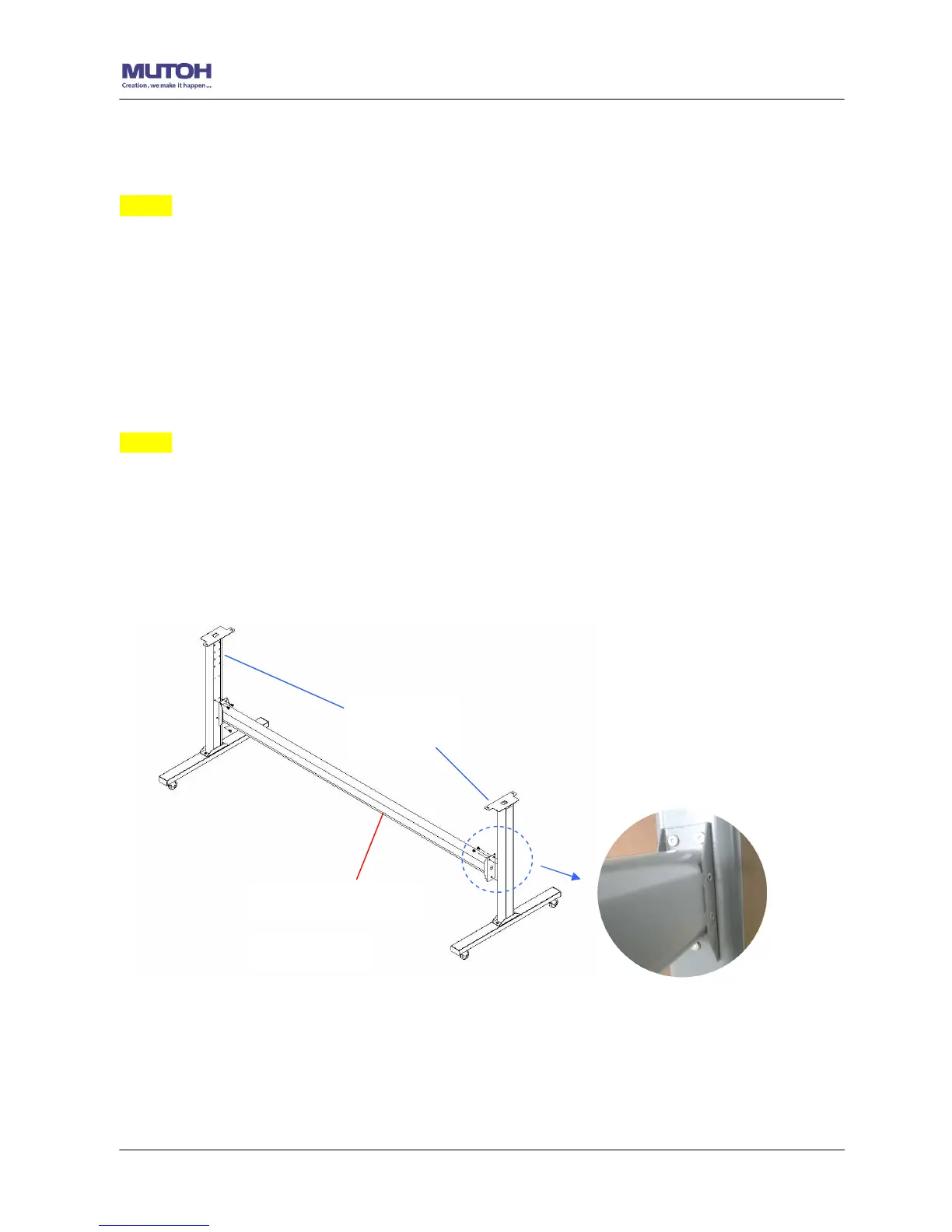

Figure 2-1
Figure 2-2
