ValueCut User Manual
Installation 2-8
2.4 Installation of Media Basket System
Step 1
Please examine the supplied items in the accessory box
2 pieces of basket arms
2 pieces of basket rods
1 piece of basket
2 pieces of fixtures (for basket arms)
8 pieces of M3 screws
1 piece of 2mm L-shape hexagon screw driver
Step 2

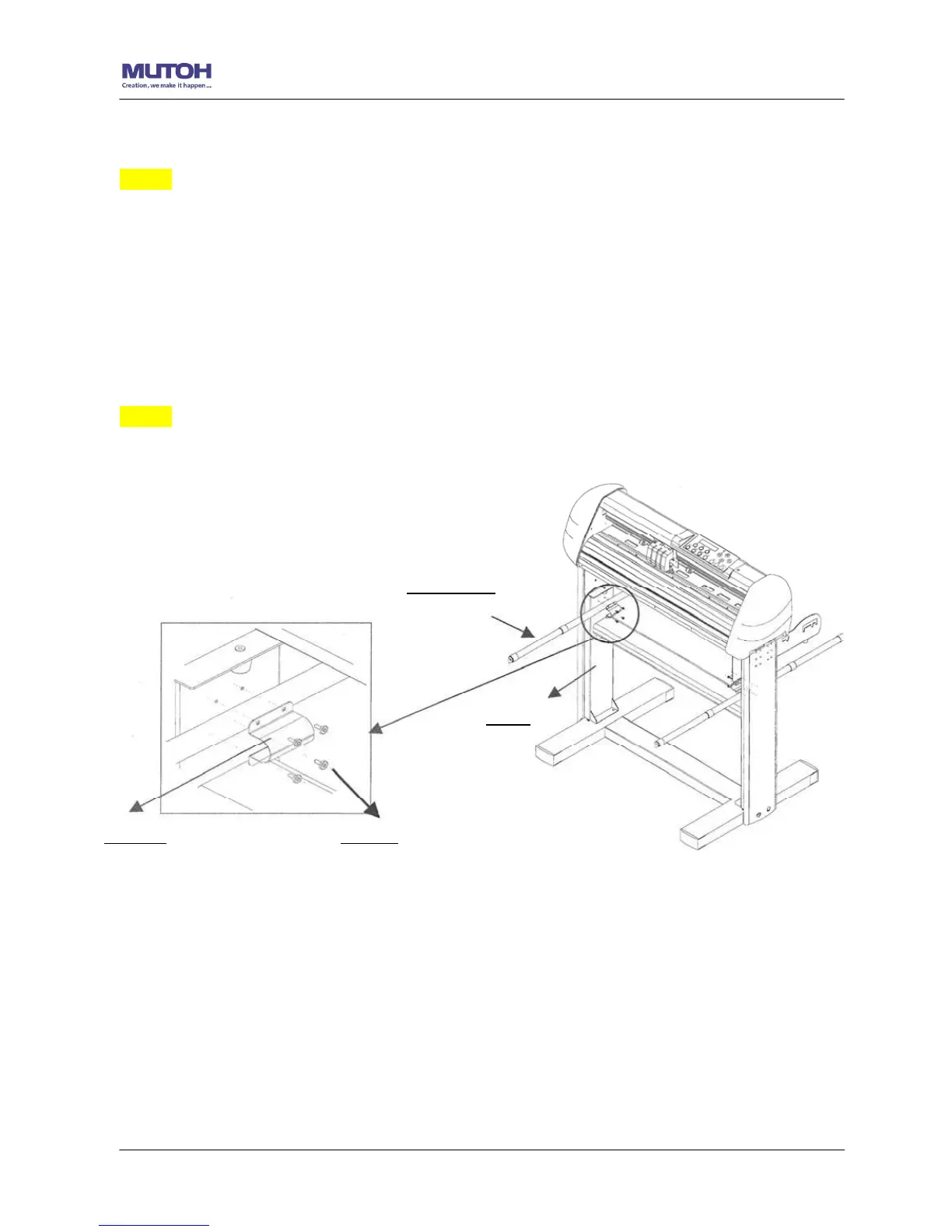

First, place the basket arms beside the stand and fix them with fixtures. Then insert the M3
screws and tighten them with the 2mm L-shape screw driver. (See Figure 12)
Basket arm
Fixtures Screws
Stand
Figure 2-12
