MUTOH ValueCut Series - Page 19

ValueCut User Manual
Installation 2-7

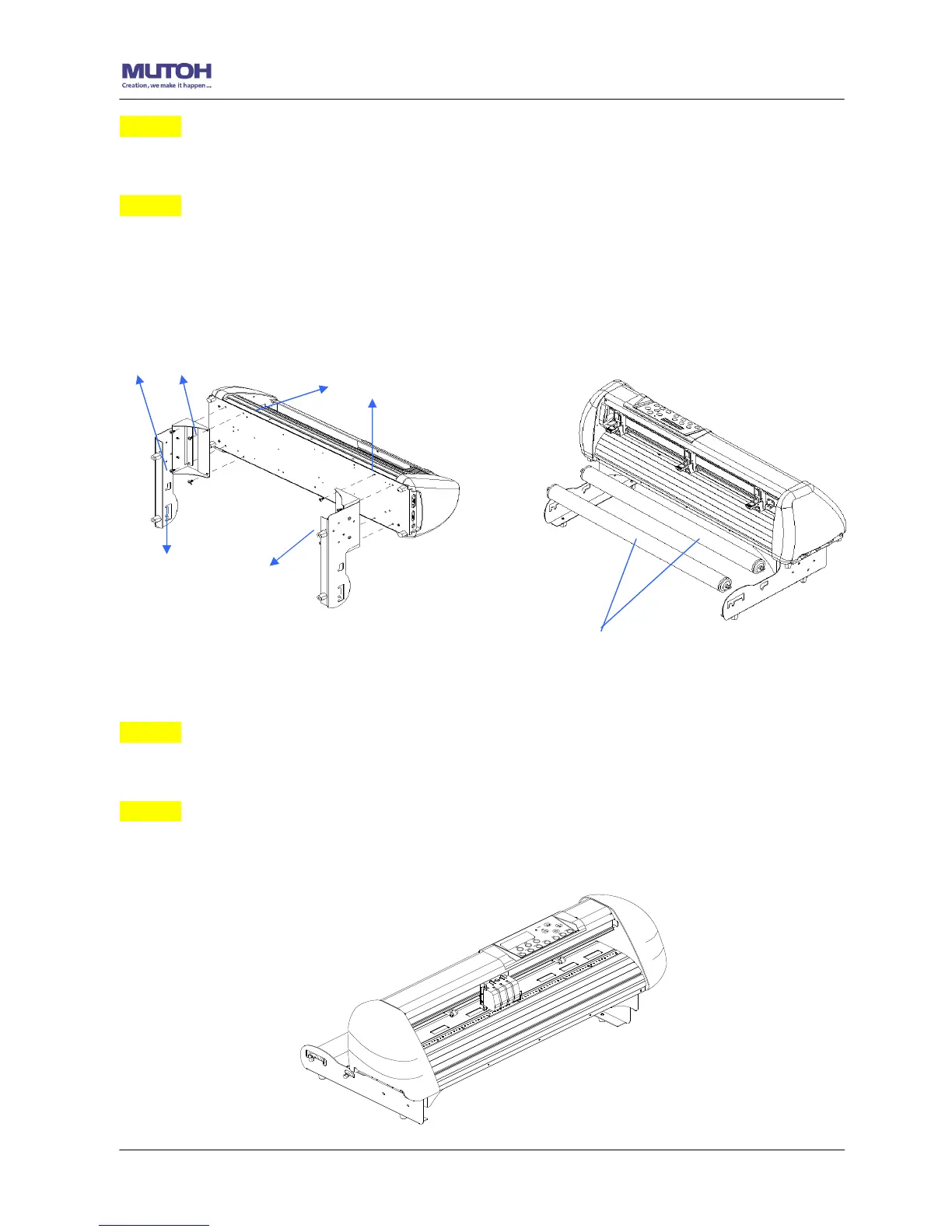

Step 3 Position the Desktop Support Brackets beside the Roll Holder Support and insert
M6 screws into the Roll Holder Support and tighten them with M6 L-shape screw driver. (Refer
to Figure 2-9 at the left).
Step 4
Put the bottom of machine in lateral, and position the Roll Holder Assembly beside the bottom
of the machine. Then, insert the M6 screws into the holes of Roll Holder support assembly
and tighten them with M6 L-shape screwdriver. Like Figure 2-10.
Step 5
Place the two roll holders into the holes of Roll Holder Support (Figure 2-10).
Step 6
The complete Desktop Media Support System will be shown as in Figure 2-11.
Figure 2-11
Figure 2-9
M6 screws
Screw holes
Roll Holder Assembly
Figure 2-10
Roll Holders
