MUTOH ValueCut Series - Page 16

ValueCut User Manual
Installation 2-4
Step 5

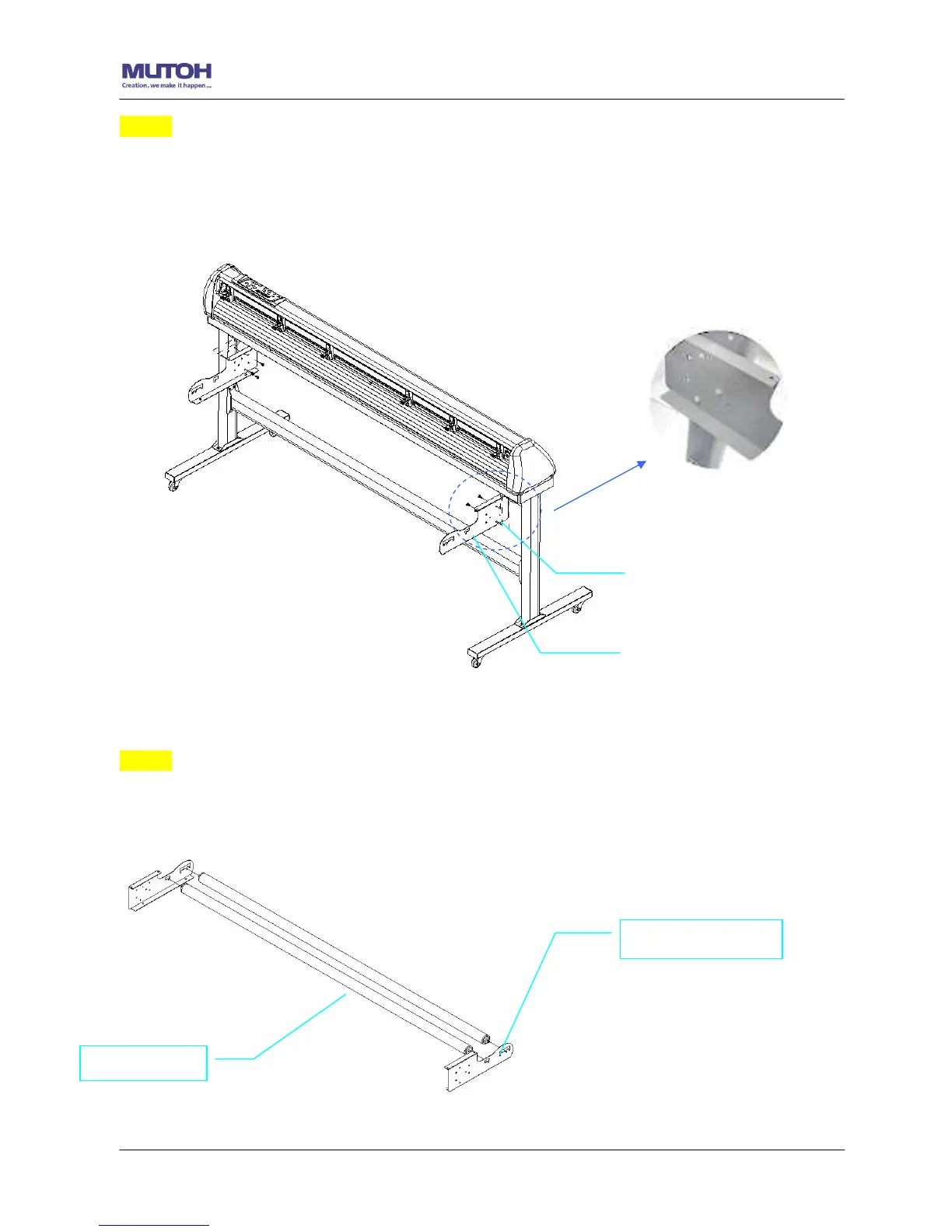

Insert the roll holder support with the screws into the holes of the stand, and then tighten them
up as shown in Figure 2-4 . You could decide roll holder support’s position by inserting into
different holes.
Step 6
Place two roll holders into the holes in the roll holder support. (Figure 2-5); Push the roll holder
to the left until it is correctly positioned and then to the right to allow successful installation.
Roll holder support
Roll holders
Roll holder
support
3 screws
Figure 2-4
Figure 2-5
