ValueCut User Manual
CorelDRAW Plug-In A-4

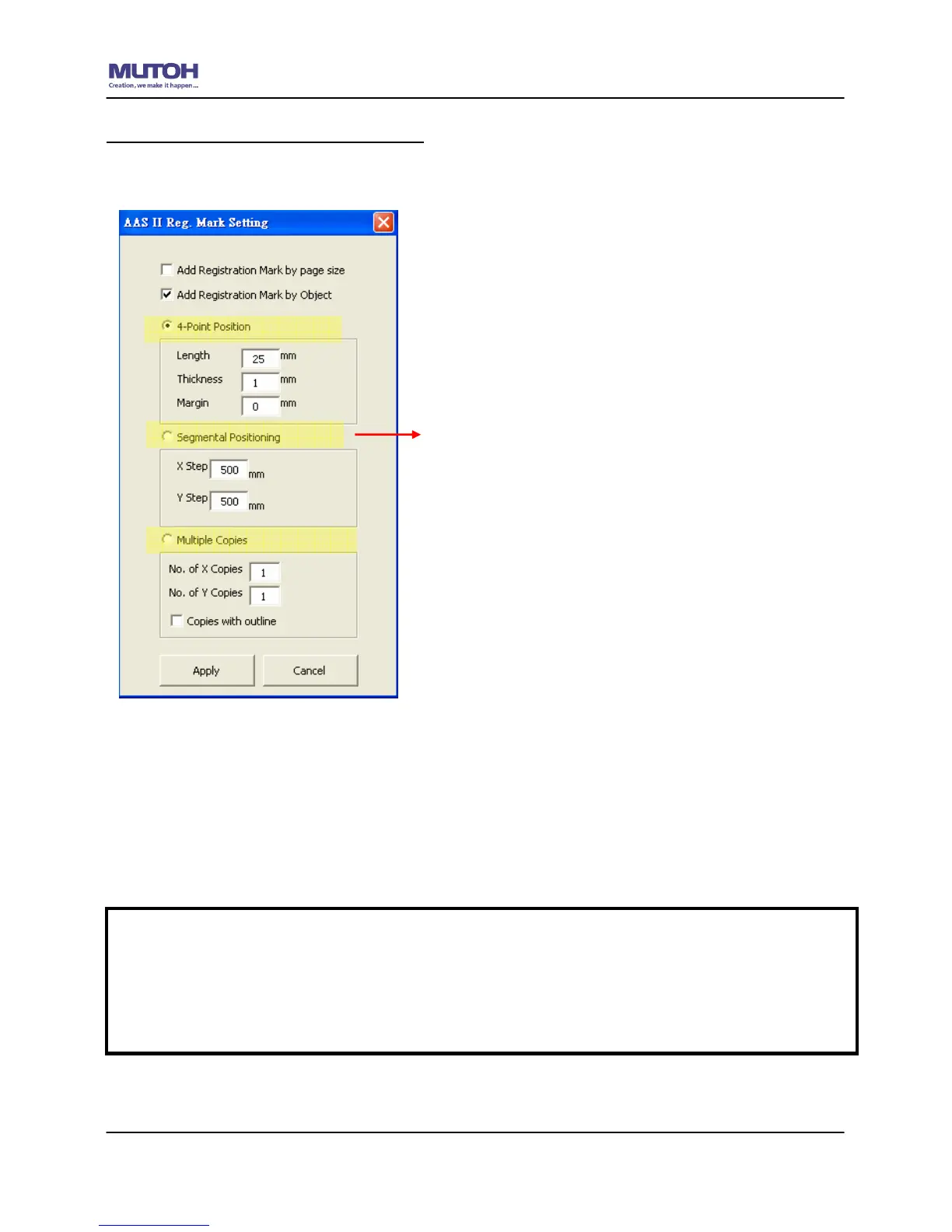

Add Registration Mark by Object
If you tick “Add Registration Mark by Object”, you will be offered three options of registration
marks as shown below.
4-Point Positioning
 Length: The length of marks
 Range: 5mm~50mm
 Optimized Setting: 25mm
 Thickness: The line thickness of marks
 Range: 1mm~2mm
 Optimized Setting: 1mm
 Margin: The distance between marks and images
 Range: 0mm~50mm
 Optimized Setting: 5mm
Segmental Positioning
 X Step: The distance of intermediate position on the X axis
 Y Step: The distance of intermediate position on the Y axis
 Range: 200mm~600mm
 Optimized Setting: Less than 500mm
Multiple Copies
 No. of X Copies: The numbers of copies on X axis
 No. of Y Copies: The numbers of copies on Y axis
 Range: 1~50
. (The more copies you make, the more time
is needed for data transmission.)
 Numbers of X Copies * Numbers of Y Copies = The total
amount of image copies
 Copies with outline：To show outlines of image graphics
Note:
The values entered in the “4-Point Positioning” section (length, thickness and margin) will still
be applied when you tick “Segmental Positioning” or “Multiple Copies”.
